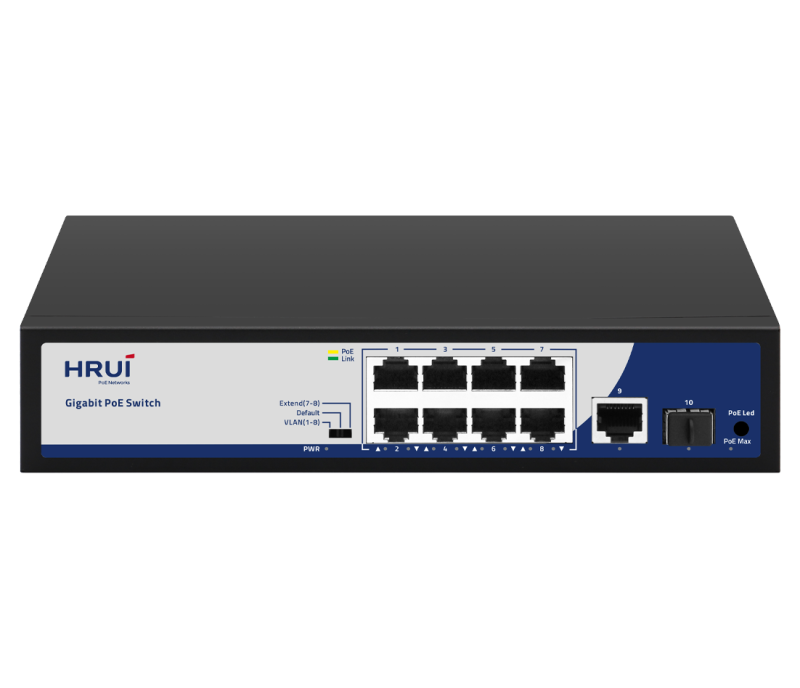

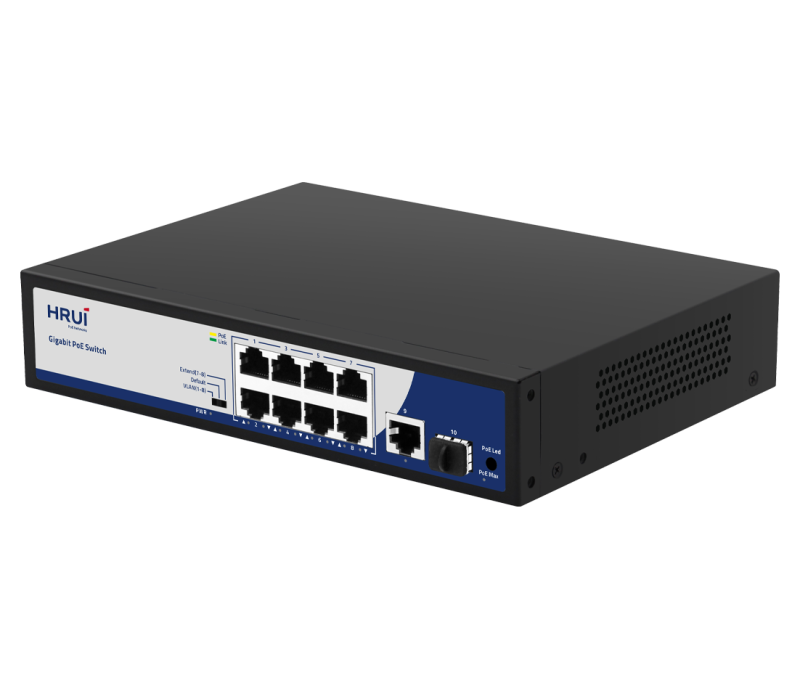

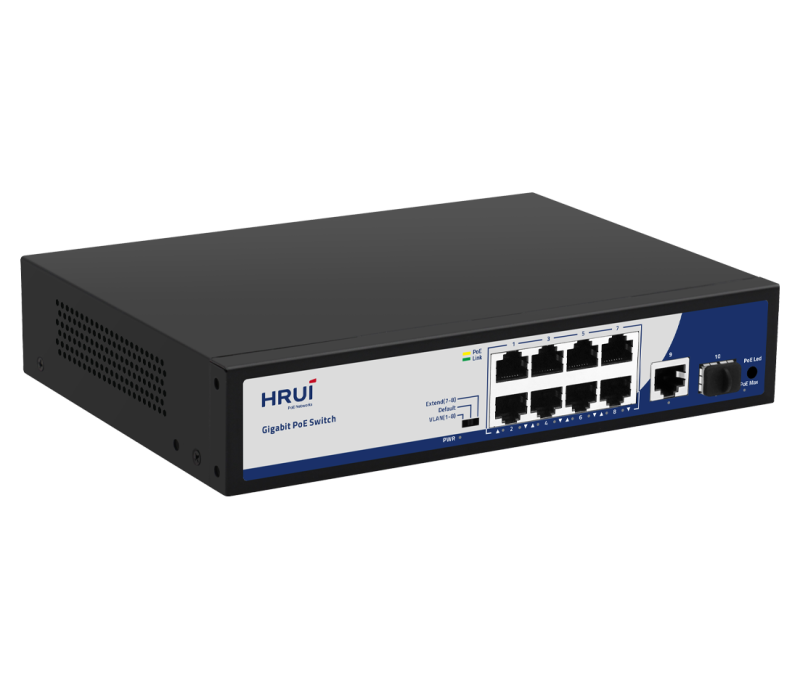

HR-AFG-811NS
10 Port Full Gigabit Intelligent Standard PoE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.
- Feature and Benefits
- Parameter

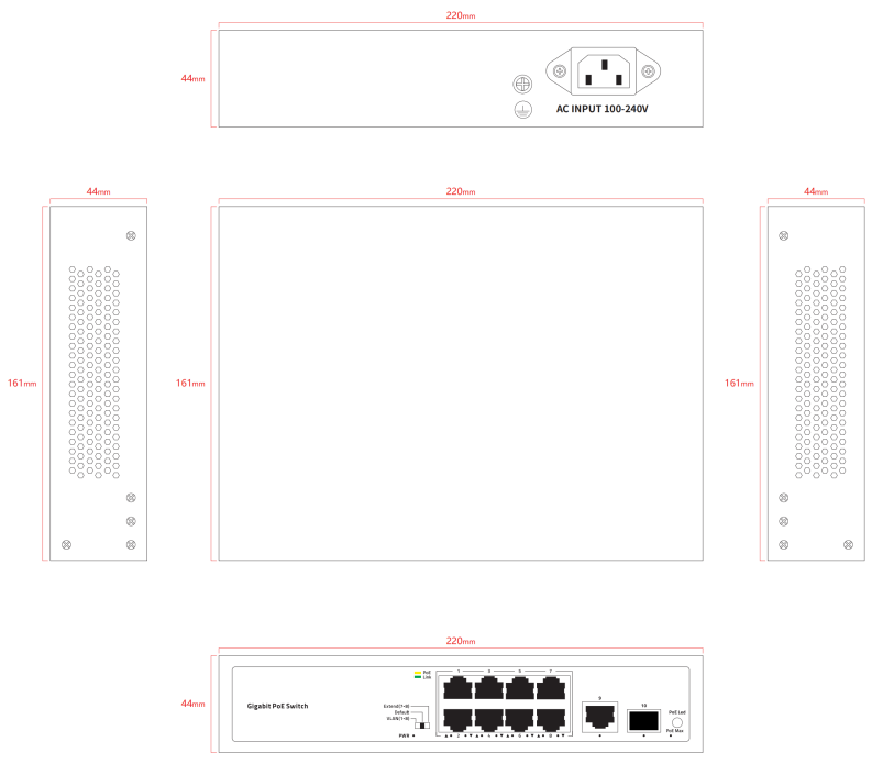

- Product structure
- Application topology
The HRUI AI PoE switches provide a range of models featuring both 100M/Gigabit PoE, RJ45, and SFP uplink ports. These switches meet the IEEE 802.3af/at standards for Power over Ethernet, with PoE ports capable of 30W. The devices offer three working modes: Default, VLAN (Port Isolation), and Extend. Additionally, the series supports PoE watchdog functionality in both VLAN and Extend modes, enabling the detection and automatic reboot of unresponsive or dropped PoE-powered devices.
With user-friendly installation and maintenance processes, these switches help establish a secure and high-performance network. HRUI AI PoE switches are ideal for various Ethernet access applications, including small to medium-sized enterprises, internet cafes, hotels, and schools.
FEATURES

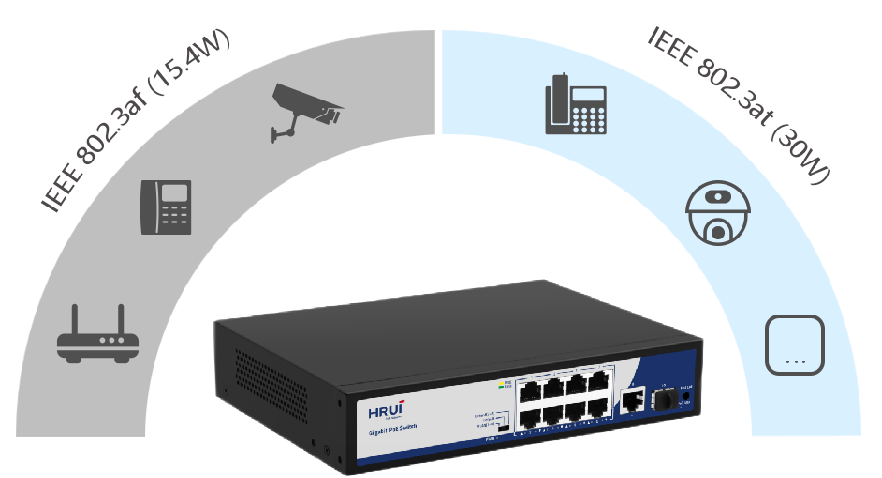

| • Power Over Ethernet |
This series of switches provides PoE ports, compliant with IEEE 802.3af/at, enabling simultaneous data and power transmission to devices via a single, convenient Ethernet cable. By integrating power delivery into a single cable, these switches streamline cabling infrastructure and eliminate the need for separate power sources, thereby providing an efficient and cost-effective solution for powering network devices. |
|
| • Advanced Functions with DIP Switch |

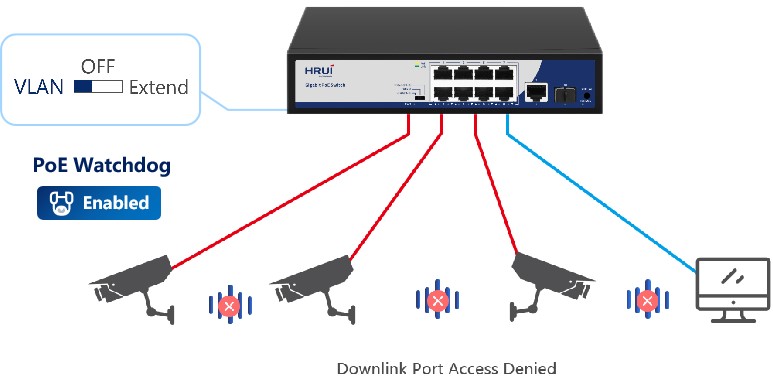

VLAN: Downlink ports are isolated from each other, but can still communicate with uplink ports. This mode also enables PoE watchdog on ports. |
|

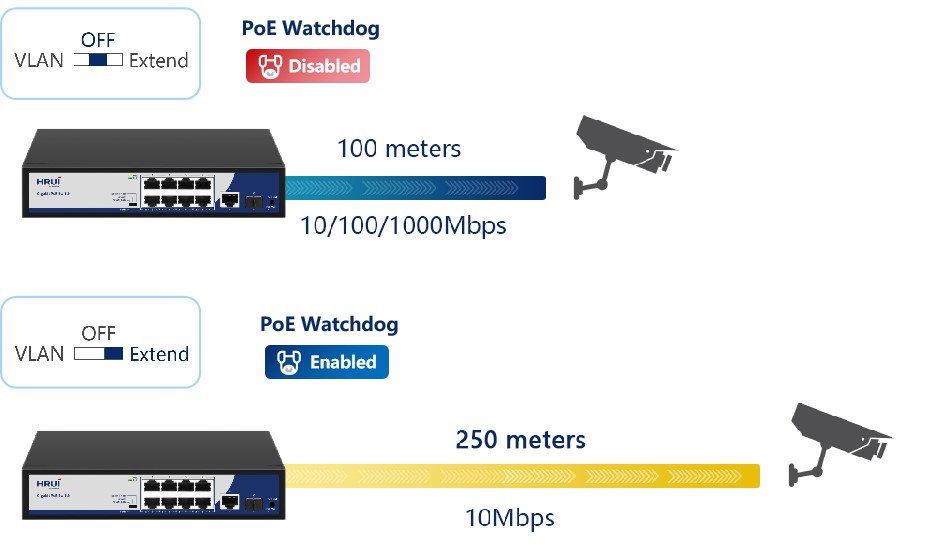

Default: All ports support communication with each other, with a transmission distance of up to 100 meters and an adaptive speed of 10/100/1000Mbps. This mode disables PoE watchdog on ports. |
Extend: The downlink PoE & data transmission distance of port 7-8 can reach up to 250 meters, with a speed of 10Mbps. This mode enables PoE watchdog on ports. |
|

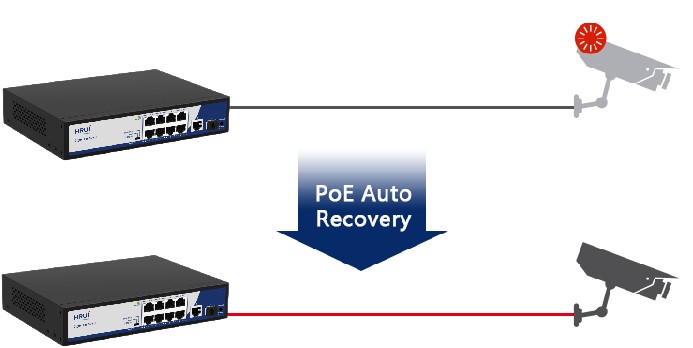

| • AI PoE Watchdog |
Detect and reboot dropped or unresponsive PoE-powered devices. |
|
| • Safe PoE Smart Boot-up |

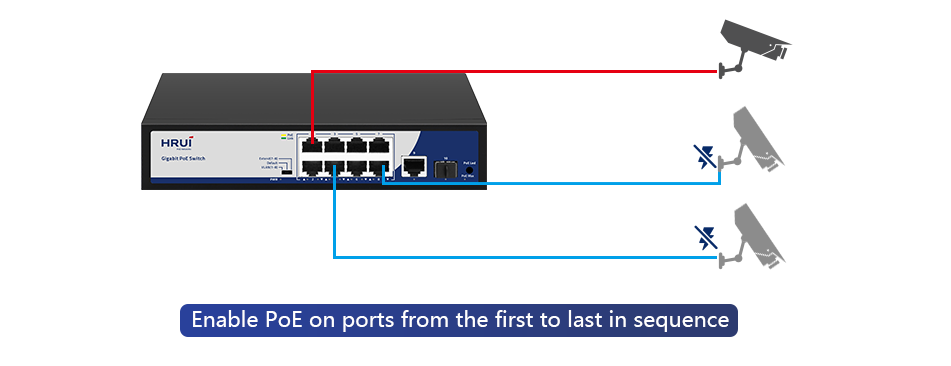

Support PoE Smart Boot-up that enables PoE on ports from the first to last in sequence to prevent damage to the power supply by sudden large currents. The function is enabled by default. |
|

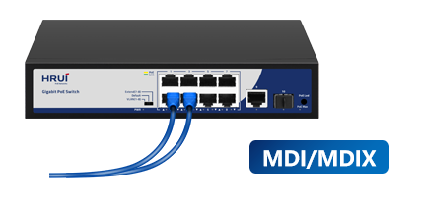

| • Plug and Play, Easy to Use |
All Ethernet ports on our switches support MDI/MDIX compatibility, allowing for easy setup with no software installation or configuration needed. |
|

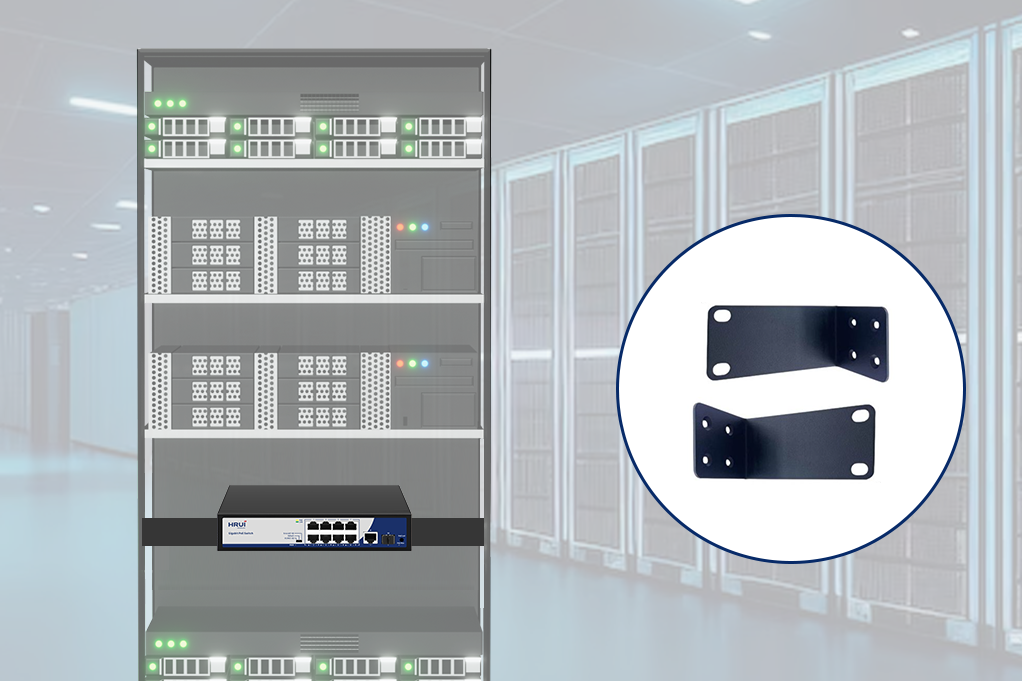

| • 19 Inch Rack Mout | • High Reliable Design |
Support installed in a standard rack environment, easy to integrate with other equipment and manage cabling. | Support 4KV surge and 8KV ESD protection. |
|
|
Features and Highlights
• 8* 1G PoE ports+1 *1G uplink port+1 *1G SFP port
• Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards
• RJ45 port supports 10M/100M/1G adaptive
• PoE port automatically activates PoE watchdog mode in VLAN and Extend modes
• Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard
• The panel indicator LED will monitor the working status and assist in fault analysis
• Supports 1-8 port PoE power supply priority, with ports in the top priority being higher
Description | Specification |
Model | HR-AFG-811NS |
Interface | 8* 1G PoE ports |
1* 1G uplink port | |
2*1G SFP port | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (1000Mbps Ethernet) | |
IEEE802.3x (Flow Control) | |
Bandwidth | 20Gbps |
Packet Forwarding Rate | 14.88Mpps |
Packet Buffer | 4Mbit |
MAC Address Table | 8K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af (15.4W) |
IEEE802.3at (30W) | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 1-8 PoE power output <30W |
PoE Power Budget | 140W |
Surge Protection | Surge protection: common mode 4KV |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%,non condensing |
Storage Humidity | 5%~95%,non condensing |

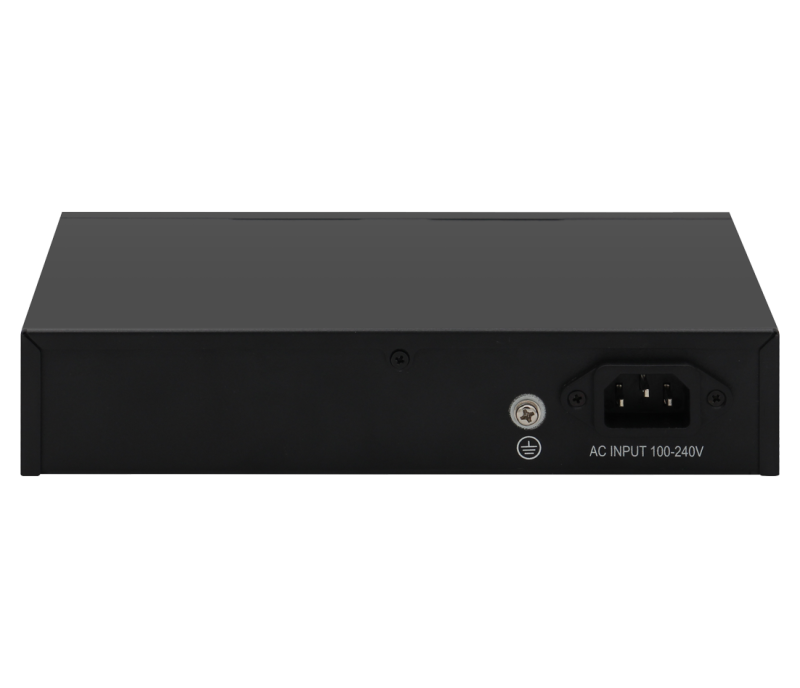

Power Supply | AC 100-240V 50/60Hz |
DC 52V 2.88A | |
Mainboard Power Consumption | 6.7W |
Structure Information | Product Dimensions :220*161*44mm |
Packaging Dimensions : 315*215*85mm | |
Product Net Weight: 1.03KG | |
Product Gross Weight:1.37KG | |
Packing Information | Carton Dimensions :445*445*335mm |
Packing Quantity: 10PCS | |
Packing Weight: 14.7KG | |
Security certification | CE, RoHS |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
PWR LED | Green LED On: Powered on |
Green LED Off: Powered off | |
1-8 LED | Green LED On: 10M/100M/1G link connection is normal |
Green LED Off: Link locked | |
Yellow LED On: PoE powered on | |
Yellow LED Off: PoE powered off | |
Flashing: Data transmission | |
9 LED | Green LED On: 10M/100M/1G link connection is normal |
Green LED Off: Link locked | |
Flashing: Data transmission | |
10 SFP LED | Green LED On: 1G link is normal |
Green LED Off: Link locked: | |
Flashing: Data transmission | |
PoE Max LED | Green LED On: indicates PoE power usage is less than 90% |
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% | |
Green LED Off: indicates that PoE power is used at 95%<p<100%< span=""> | |
PoE LED Buttons | Dual color light selection: default green (link data), switch yellow light (PoE) |
VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-8 ports isolated from each other, communicating with 9-10 ports, port PoE watchdog mode enabled |
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive, port PoE watchdog mode is turned off | |
Extend: Link extension mode,7-8port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode is enabled |
