HR200-AXG-411NS-65
Gigabit intelligent PoE switch, with 4*Gigabit PoE ports + 1*Gigabit uplink RJ45 port + 1*Gigabit uplink SFP port, IEEE 802.3af/at/ Hi-PoE standard, bandwidth 12Gbps, total power 65W, port-1 supports Hi-PoE 60W power supply, surpport port isolation and 250m transmission, suitable for -10~50℃ wide temperature environment
- Feature and Benefits
- Parameter
- Product structure
- Application topology

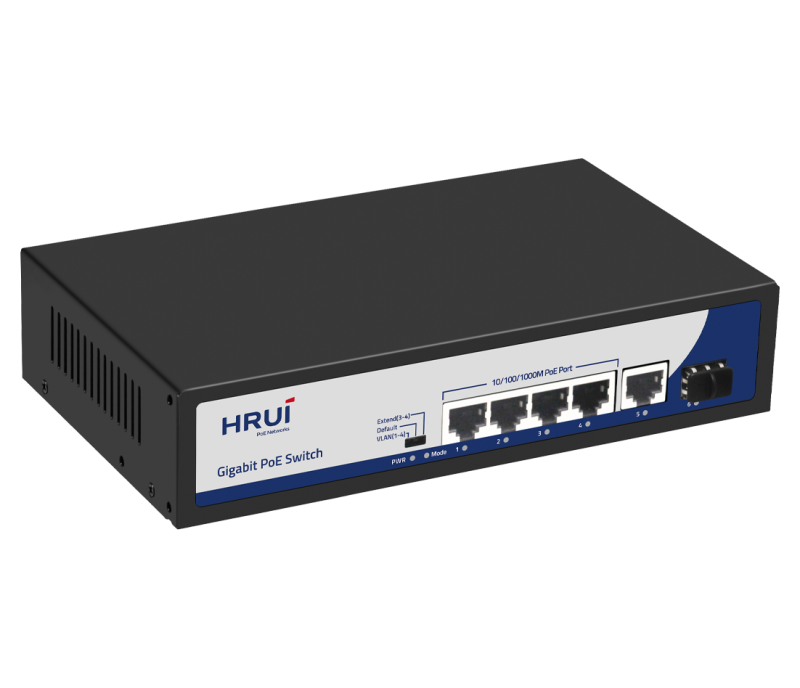

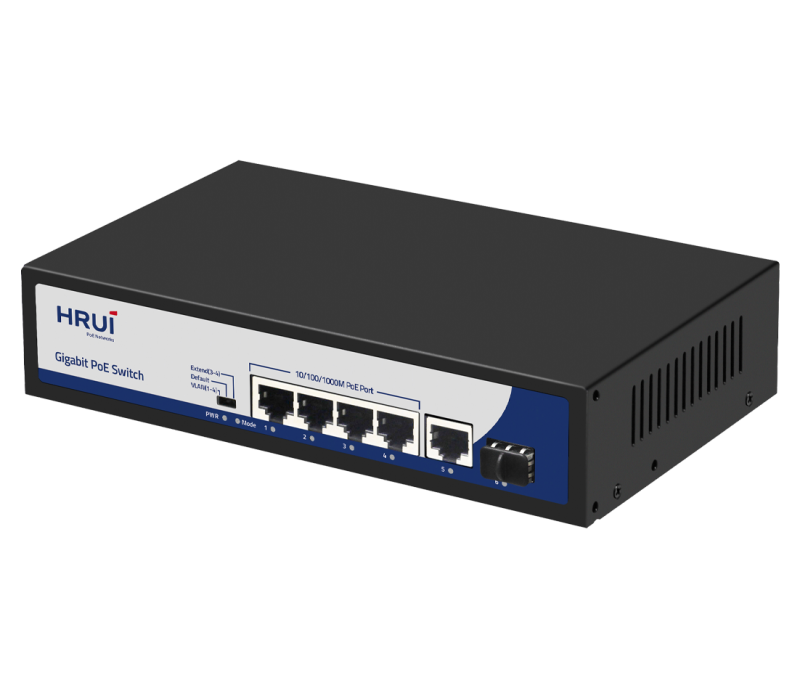

The HR200-AXG-411NS-65 is a high-performance 6-Port Gigabit Intelligent PoE Switch, designed for efficient power distribution and robust network connectivity. It features 4 Gigabit PoE ports, 1 Gigabit uplink RJ45 port, and 1 Gigabit uplink SFP port, fully compliant with IEEE 802.3af/at and Hi-PoE standards. With a bandwidth capacity of 12 Gbps and a total power output of 65W, this switch ensures seamless data transmission and reliable power supply. Port 1 uniquely supports Hi-PoE power delivery of up to 60W. Ideal for a wide range of environments, it operates effectively within a temperature range of -10°C to 50°C and also includes features such as port isolation and a maximum transmission distance of 250 meters.
Product Features:
Port Configuration: 4 Gigabit PoE ports, 1 Gigabit SFP uplink port, and 1 Gigabit RJ45 uplink port for flexible connectivity options.
Standards Compliance: Designed in accordance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards for reliable performance.
Flexible Connectivity: RJ45 ports support 10M, 100M, and 1G auto-negotiation for versatility.
Flow Control: Supports Full Duplex (IEEE 802.3x) and Half Duplex (Back Pressure) flow control methods.
Auto MDI/MDIX Support: Automatic port flipping capability eliminates the need for crossover cables, simplifying setup.
Advanced Mechanism: Utilizes a storage and forwarding exchange mechanism for efficient data handling.
Status Monitoring: The panel features LED indicators that monitor operational status and help with fault diagnosis.
Flexible Modes: Supports VLAN, Default, and Extend modes for customized network management.
Power Output: Delivers up to 60W of PoE power from Port 1, ideal for power-hungry devices.
Description | Specification |
Model | HR200-AXG-411NS |
Interface | 4 *1G PoE ports |
1 *1G RJ45 port | |
1* 1G SFP port | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (Gigabit Ethernet) | |
IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
IEEE802.3x (Flow Control) | |
Bandwidth | 12Gbps |
Packet Forwarding Rate | 8.928Mpps |
Packet Buffer | 1Mbit |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af (15.4W) |
IEEE802.3at (30W) | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 1 PoE power output <60W |
Port 2-4 PoE power output <30W | |
PoE Power Budget | 60W |

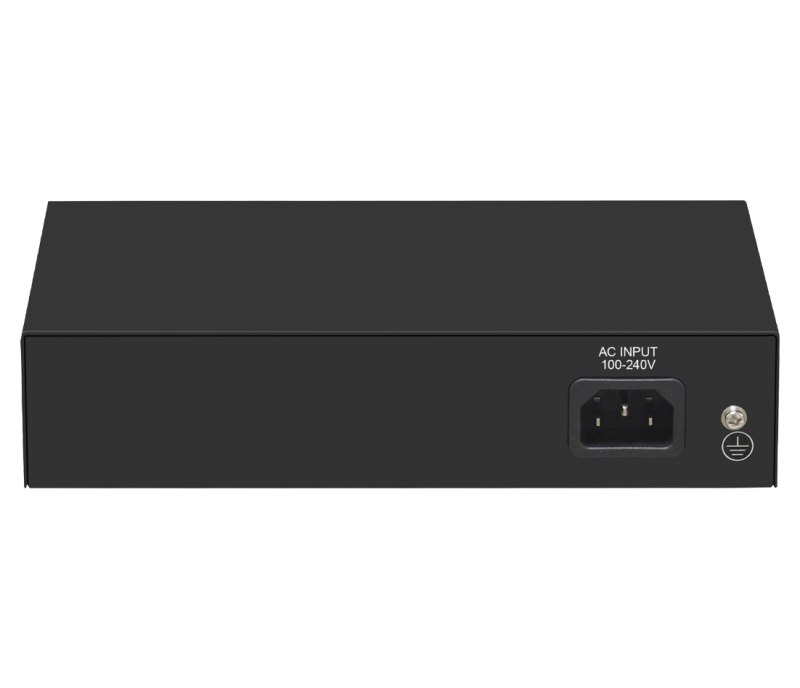

Power Supply | AC 100-240V 50/60Hz |
DC 52V 1.25A | |
Mainboard Power Consumption | 3.78W |

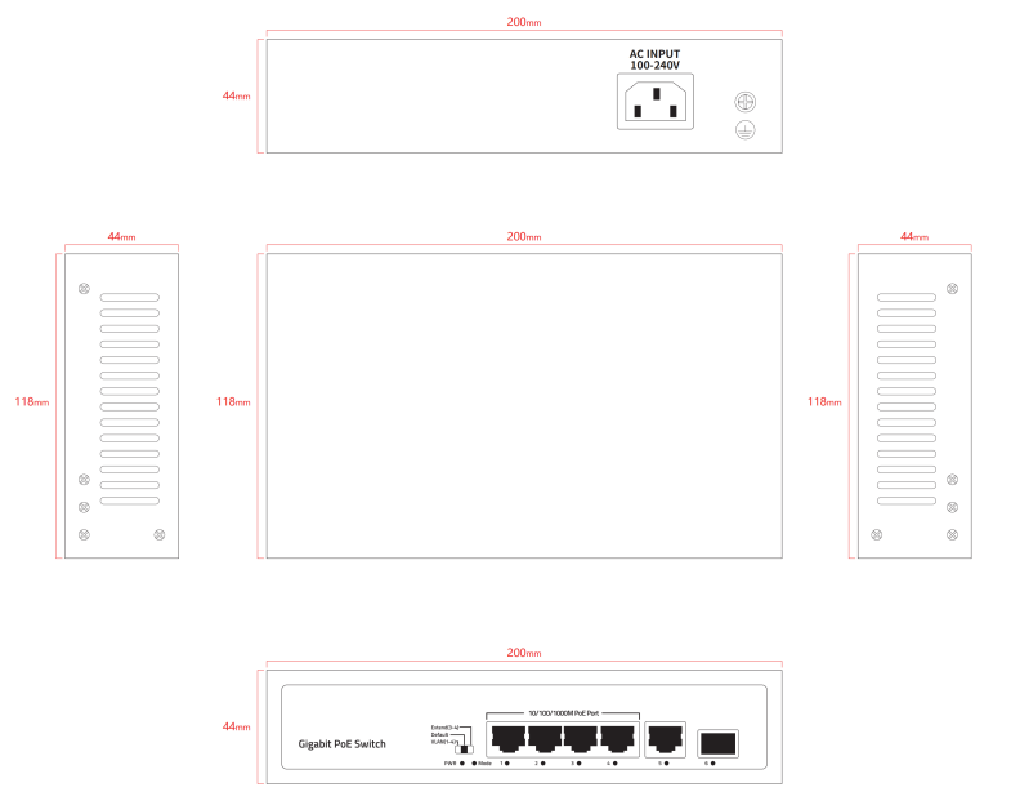

Structure Information | Product Dimensions :200*118*44mm |
Packaging Dimensions : 245*190*60mm | |
Product Net Weight: 0.67Kg | |
Product Gross Weight:0.97Kg | |
Packing Information | Carton Dimensions :520*320*400mm |
Packing Quantity: 20PCS | |
Packing Weight: 20.4KG | |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
Certification | CE,FCC,RoHS |
Surge Protection | Port protection: common mode 4KV, differential mode 2KV ; Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%,non condensing |
Storage Humidity | 5%~95%,non condensing |
PWR Green LED | On: Powered on |
Off: Powered off | |
Mode Green LED | On:VLAN |
Flashing:Extend | |
Off:Default | |
1-6 Green LED | On: 10M/100M/1G Link normal |
Off: Link blocked | |
Flashing: Data transmitting | |
VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-4 ports isolated from each other, communicating with 5-6 ports, port PoE watchdog mode is enabled |
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10M/100M/1G adaptive,port PoE watchdog mode is turned off | |
Extend: Link extension mode, 3-4 port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode is enabled |
