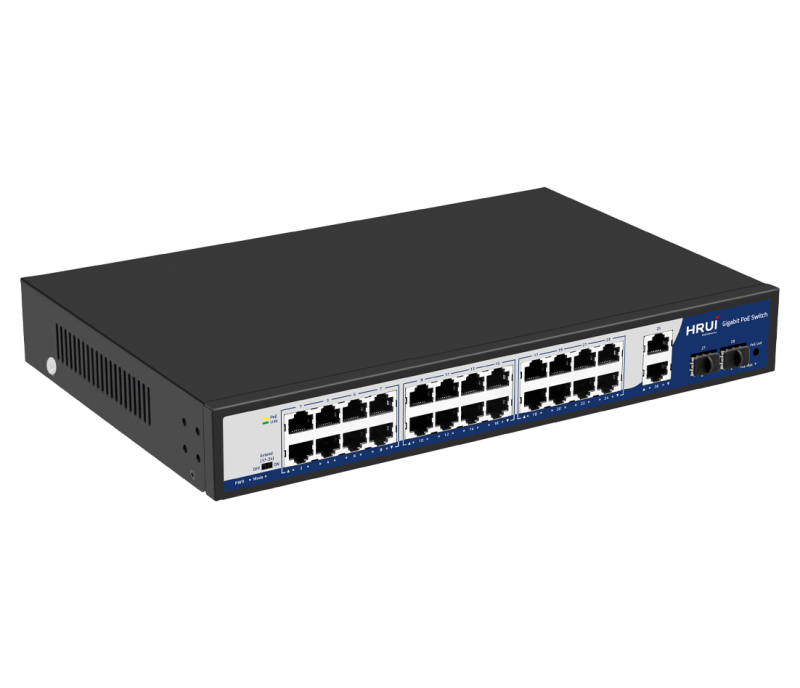

HR900-AFG-2422S-300D
28 Port Gigabit Intelligent Standard PoE Switch, with high quality and high-speed network IC and the most stable PoE chips, support 24* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP Ports, and provide seamless connections to 10/100/1000M Ethernet, and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.
- Feature and Benefits
- Parameter
- Product structure
- Application topology
24* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP Ports；
Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab Standard;
Ethernet Ports support 10/100/1000M self- adaptive;
The AI mode is automatically enabled 10M speed for Ports 17~24 in Extend mode;
POE priority is supported, from port 1 to port 16, which is enabled by default；
Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex;
Zero configuration feature, automatically supplied to adaptive equipment;
Panel indicator monitoring status and help failure analysis;
With DIP switch, support Default and Extend modes;
Support port lightning surge: common mode 4KV, differential mode 2KV（level B）; Electrostatic ESD: air 8KV, contact 6KV（level C）.

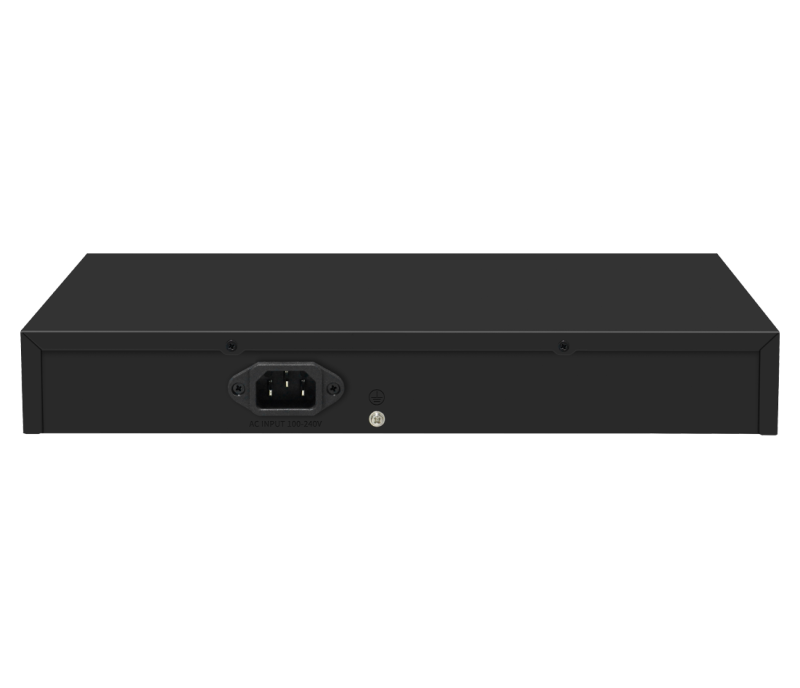

Description | Specification |
Model | HR900-AFG-2422S-300D |
Interface | 24 *1G PoE ports |
2 *1G RJ45 ports | |
2 *1G SFP ports | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (Gigabit Ethernet) | |
IEEE802.3x (Flow Control) | |
IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
Bandwidth | 56Gbps |
Packet Forwarding Rate | 41.644Mpps |
Packet Buffer | 3Mbit |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af （15.4W） |
IEEE802.3at （30W） | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 2-24 PoE power output <30W,Port 1 PoE power output 60W |
PoE Power Budget | 285W |
Power Supply | AC 100-240V 50/60Hz |
DC 52V 5.76A | |
Mainboard Power Consumption | 14.27W |

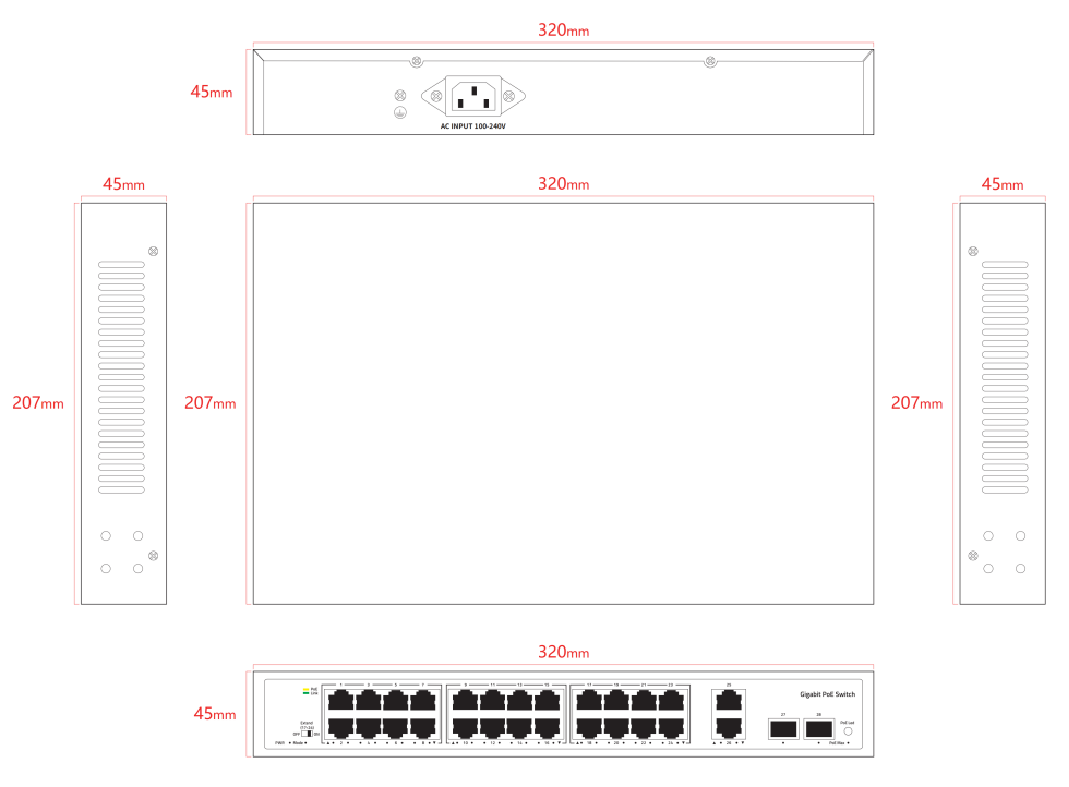

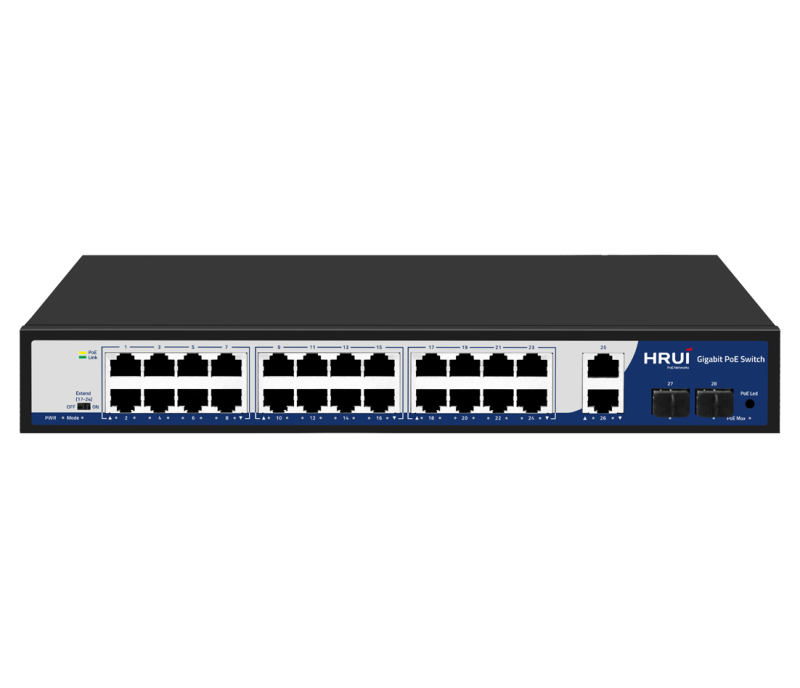

Structure Information | Product Dimensions :320*207*44mm |
Packaging Dimensions :370*290*85mm | |
Product Net Weight:1.967KG | |
Product Gross Weight:2.497KG | |
Packing Information | Carton Dimensions :445*310*390mm |
Packing Quantity: 5PCS | |
Packing Weight: 13.485KG | |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
Surge Protection | Port Surge: common mode 4KV, differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV (Class C) | |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%,non condensing |
Storage Humidity | 5%~95%,non condensing |
PWR Green LED | On: Powered on |
Off: Powered off | |
1-28 Green LED | On: 10M/100M/1GLink normal |
Off: Link blocked | |
Flashing: Data transmitting | |
1-24 Yellow LED (PoE) | On: PoE powered on |
Off: PoE powered off | |
PoE Max Green LED | Off: Indicate that the PoE power usage is less than 90% |
Flashing(Once per second): Indicate that the PoE power usage of 90% ≤ P ≤ 95% | |
On: Indicate that the PoE power is used at 95%<P<100% | |
Mode LED Green LED | Off: Extend off |
Flashing: Extend on | |
PoE Led Button | Dual color LED selection: default green (link data), switch yellow LED (PoE) |
Extend mode Button | OFF: All ports can communicate with each other, with an adaptive transmission rate of 10M/100M/1G, and port PoE watchdog mode turned off; |
ON: The 17-24 ports can extend the transmission distance by 250 meters, with a transmission rate of 10Mbps, and the PoE watchdog mode is enable on the port; |
