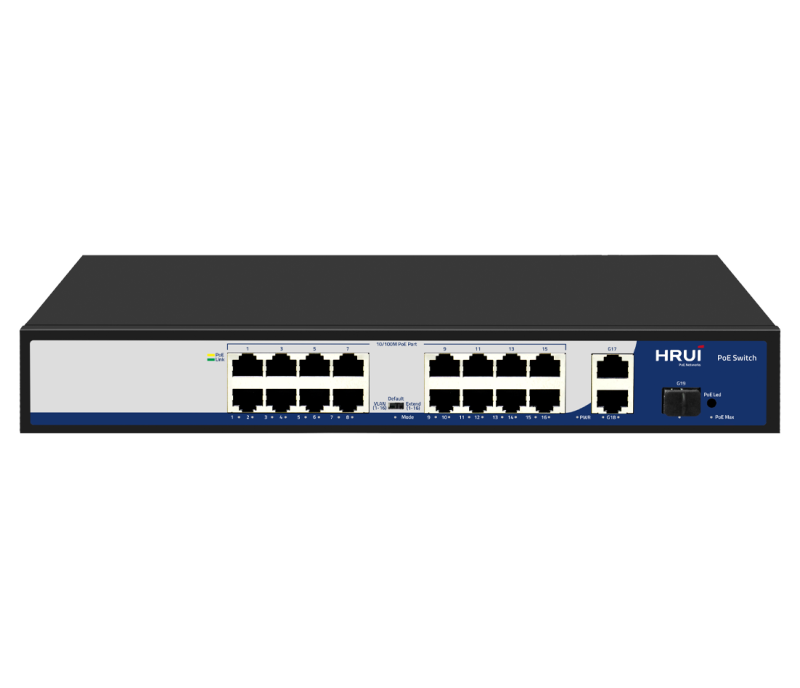

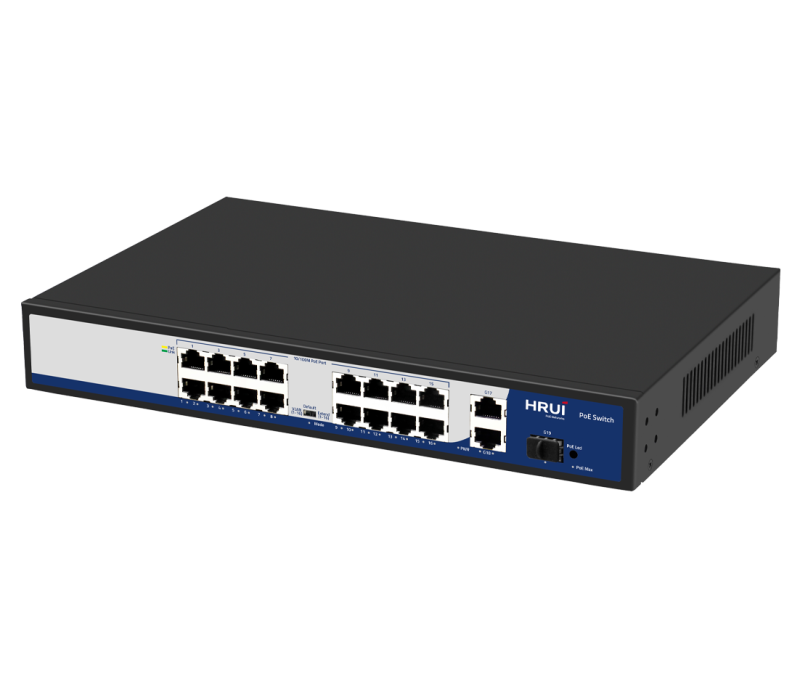

HR900-AF-1621GS-300 - 19-Port 100/1000M Intelligent PoE Switch
19 port 10/100/1000M intelligent standard PoE switch, adopting high-quality and high-speed network ICs and the most stable PoE chips, this series of PoE switches can provide seamless connection for 10/100/1000M Ethernet. The switches incorporate the latest AI functions, and the ports automatically turn on AI mode in Extend mode. The PoE power supply port can automatically detect and supply power to powered devices that comply with the IEEE802.3af or IEEE802.3at standards.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
The HR900-AF-1621GS-300 is a robust 19-port intelligent PoE switch that supports 10/100/1000Mbps connections. Engineered with high-quality network ICs and stable PoE chips, it ensures seamless Ethernet connectivity. Featuring advanced AI capabilities, the switch automatically activates AI mode in Extend mode to optimize performance. It auto-detects and powers compliant IEEE802.3af/at devices while only transmitting data for non-PoE devices. Ideal for powering IP devices like phones, cameras, and access points, it simplifies installation and maintenance, making it perfect for various applications including industrial parks, government facilities, hotels, and schools.
Product Features:
• 16 x 100Mbps PoE ports, 2 x 1G RJ45 ports, 1 x 1G SFP port
• Compliant with IEEE802.3 standards
• RJ45 ports auto-adapt to 10/100Mbps
• Extend mode activates PoE Watchdog on ports 1-16
• Supports default PoE priority from port 1-16
• Flow control via IEEE 802.3x for full duplex, back pressure for half duplex
• LED indicators for easy status monitoring and fault analysis
• Three operational modes: VLAN, Default, Extend
• One port supports up to 60W PoE output
Highlight
• 4*100Mbps PoE ports+2*100Mbps uplink RJ45 ports
• 16 *100Mbps PoE ports+2 *1G RJ45 ports+1 *1G SFP port
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.3z standards
• RJ45 port supports 10/100Mbps adaptation
• When the PoE port is in Extend mode, ports 1-16 force 10Mbps to automatically activate the PoE watchdog mode
• Support PoE priority to be enabled by default, with a priority order of 1-16
• Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex
• The panel indicator LED will monitor the working status and assist in fault analysis
• Supports three modes: VLAN, Default, and Extend
• 1 port supports 60W
Description | Specification |
Model | HR900-AF-1621GS-300 |
Interface | 16 *100Mbps PoE ports |
2 *1G RJ45 ports | |
1 *1G SFP port | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (Gigabit Ethernet) | |
IEEE802.3x (Flow Control) | |
IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
Bandwidth | 9.2Gbps |
Packet Forwarding Rate | 6.84Mpps |
Packet Buffer | 768Kbit |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af （15.4W） |
IEEE802.3at （30W） | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 2-24 PoE power output <30W,Port 1 PoE power output 60W |
PoE Power Budget | 290W |
Power Supply | AC 100-240V 50/60Hz |
DC 52V 5.76A | |
Mainboard Power Consumption | 5.3W |

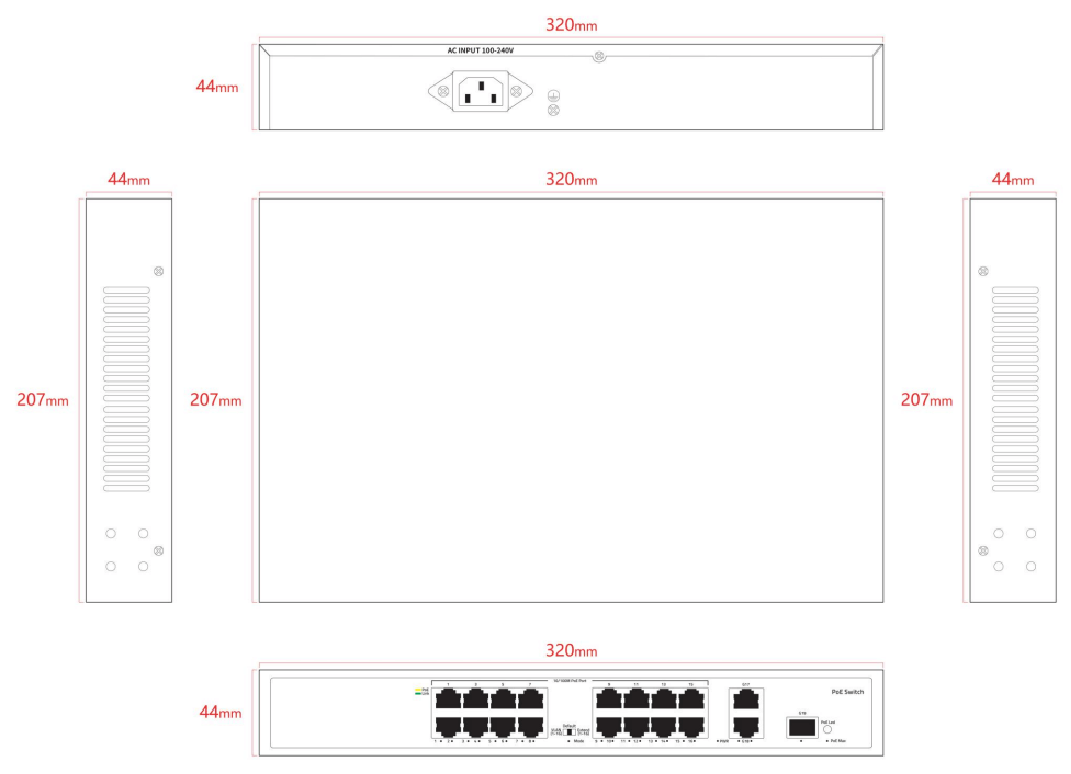

Structure Information | Product Dimensions :320*207*45mm |
Packaging Dimensions : 370*290*85mm | |
Product Net Weight:1.61KG | |
Product Gross Weight:2.14KG | |
Packing Information | Carton Dimensions :445*310*390mm |
Packing Quantity: 5PCS | |
Packing Weight: 11.7KG | |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
Surge Protection | Port Surge: common mode 4KV, differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%,non condensing |
Storage Humidity | 5%~95%,non condensing |
PWR Green LED | On: Powered on |
Off: Powered off | |
Mode Green LED | On:VLAN |
Flashing:Extend | |
Off:Default | |
1-16 Green LED | On: 10/100M Link normal |
Off: Link blocked | |
Flashing: Data transmitting | |
17-19 Green LED | On:10/100M/1G Link normal |
Off: Link blocked | |
Flashing: Data transmitting | |
1-16 Yellow LED (PoE) | On: PoE powered on |
Off: PoE powered off | |
PoE Max Green LED | On: indicates PoE power usage is less than 90% |
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% | |
Off: indicates that PoE power is used at 95%<p<100%< span=""> | |
PoE LED Buttons | Dual color LED selection: default green (link data), switch yellow LED (PoE) |
VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-16 ports isolated from each other, communicating with 17-19 ports, port PoE watchdog mode enabled |
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, port PoE watchdog mode is turned off | |
Extend: Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode is enabled |
