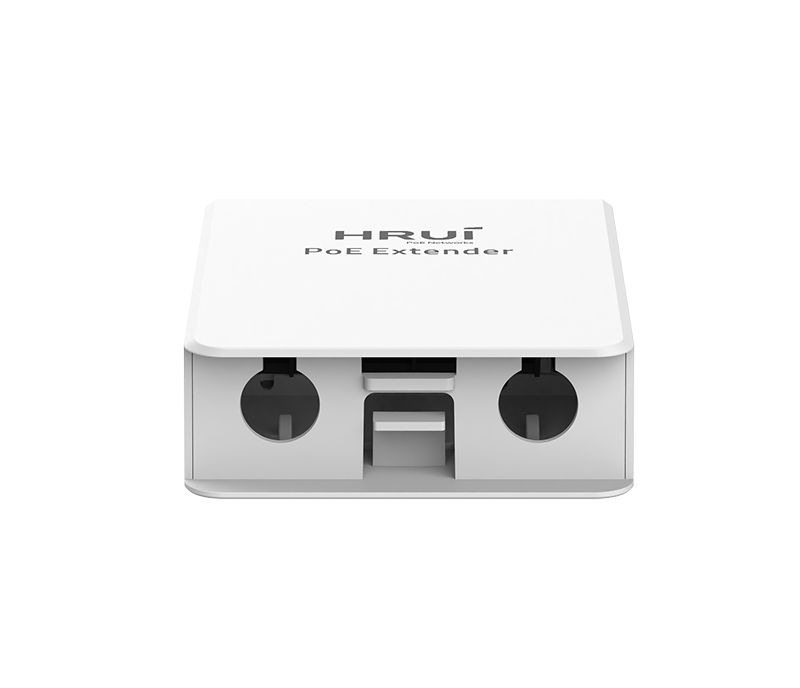

HR-AFGRW-41+ - Waterproof 1000Mbps Ethernet PoE Extender
4KV Port Surge protection | Supports Hi-PoE Input | 4*1Gbps 802.3af/at PoE Output | VLAN Port Isolation | Multiple Cascades | Wall-mounted Installation
- Feature and Benefits
- Parameter
- Product structure
- Application topology
The HR-AFGRW-41+ Waterproof Gigabit PoE Extender enhances outdoor network deployment by extending both data and power transmission beyond the standard 100 meters. Equipped with 1×1Gbps Hi-PoE (60W) input and 4×1Gbps IEEE802.3af/at PoE output, it ensures stable power distribution and reliable Gigabit performance for long-distance installations.
Compliant with IEEE 802.3/802.3u/802.3ab/802.3x standards, the extender supports 10/100/1000Mbps auto-adaptive ports, VLANmode, Auto MDI/MDIX, and LED status monitoring for simplified deployment and maintenance. Its waterproof enclosure and PoE relay extension capability make it ideal for outdoor cameras, security monitoring, and wide-area PoE network extension.
Product Features:
High-Power Input: 1×1Gbps Hi-PoE input port supporting 60W total power.
Multiple Output Ports: 4×1Gbps PoE output ports compliant with IEEE 802.3af/at, providing a 45W total power budget.
Standards Compliance: Fully complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards for reliable Gigabit performance.
Auto-MDI/MDIX: Simplifies installation with automatic port configuration.
VLAN Mode Support: Enhances network segmentation and transmission stability.
LED Status Indicators: Enables quick monitoring and troubleshooting.
Durable Protection: Offers 4KV surge protection for stable outdoor operation.
Waterproof Enclosure: Designed for durable, long-term outdoor deployment.
| Description | Specification |
| Model | HR-AFGRW-41+ |
| Interface | 1*1Gbps PoE in port |
| 4*1Gbps PoE out ports | |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE802.3ab (Gigabit Ethernet) | |
| IEEE802.3x (Flow Control) | |
| Switching Bandwidth | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port PoE out <30W |
| PoE Power Budget | 44W |
| Power Supply | IEEE802.3af/at/HiPoE |
| Mainboard Power Consumption | 1.59W |

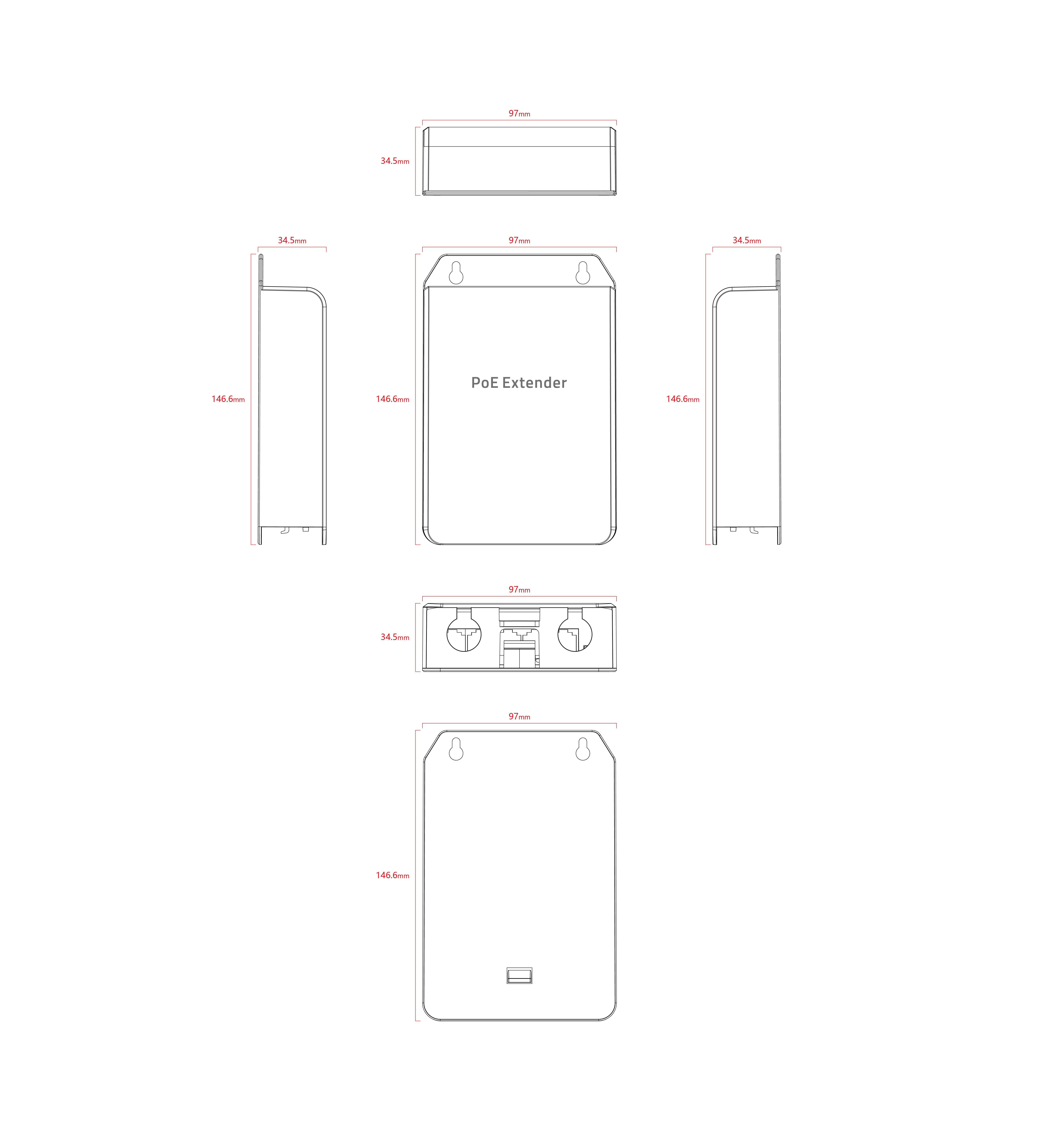

| Structure Information | Product Dimensions: 146.6*97*34.5mm |
| Packaging Dimensions: 102*152*36mm | |
| Product Net Weight: 0.15KG | |
| Product Gross Weight: 0.17KG | |
| Packing Information | Carton Dimensions: 375*335*220mm |
| Packing Quantity: 40PCS | |
| Packing Weight: 8.04KG | |
| Package Contents | PoE Extender 1pcs, Certificate of Inspection 1pcs |
| Fan Quantity | 0 |
| Installation | Desktop, Wall mounting installation |
| Surge Protection | Port Surge: Differential mode 4KV (Class C) |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| Port Green LED | On: Link normal |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| OFF/ON Modes Buttons | OFF: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100//1000Mbps adaptive(PoE Watchdog off) |
| ON: VLAN mode, PoE ports are isolated from each other, communicating with uplink port, and automatically activate the PoE watchdog mode |
