HR-AFGRW-21 Gigabit Outdoor IP67 PoE Extender
1Gbps PoE ports, IEEE 802.3af/at/HiPoE 60W, IP67 metal casing, -40°C~75°C operation, 100m extension, 6Gbps bandwidth, auto device protection, plug-and-play.
- Feature and Benefits
- Parameter
- Product structure
- Application topology

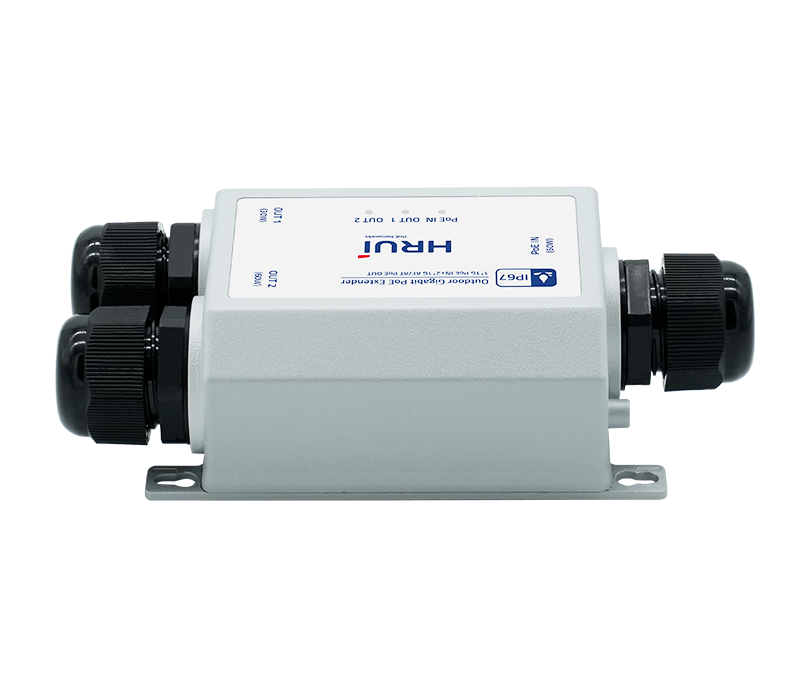

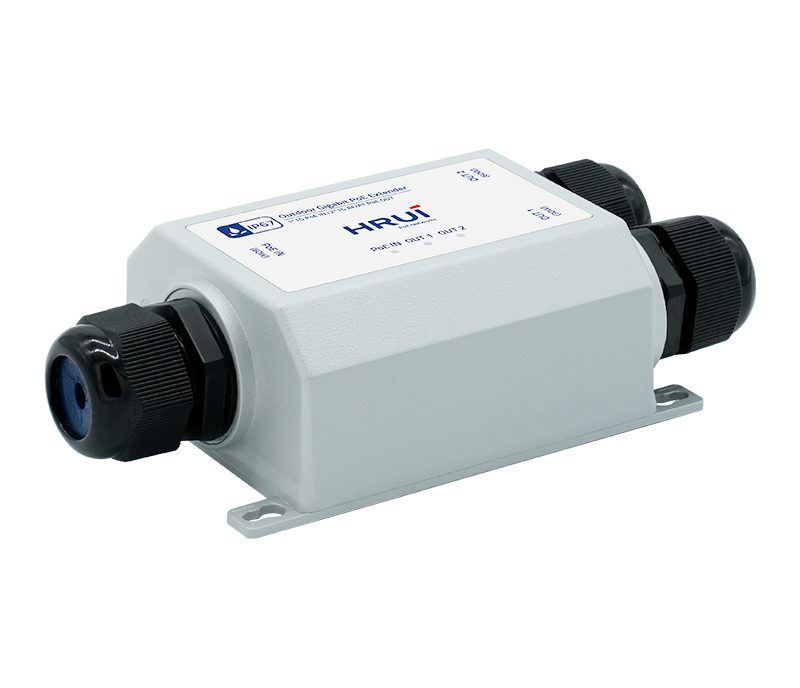

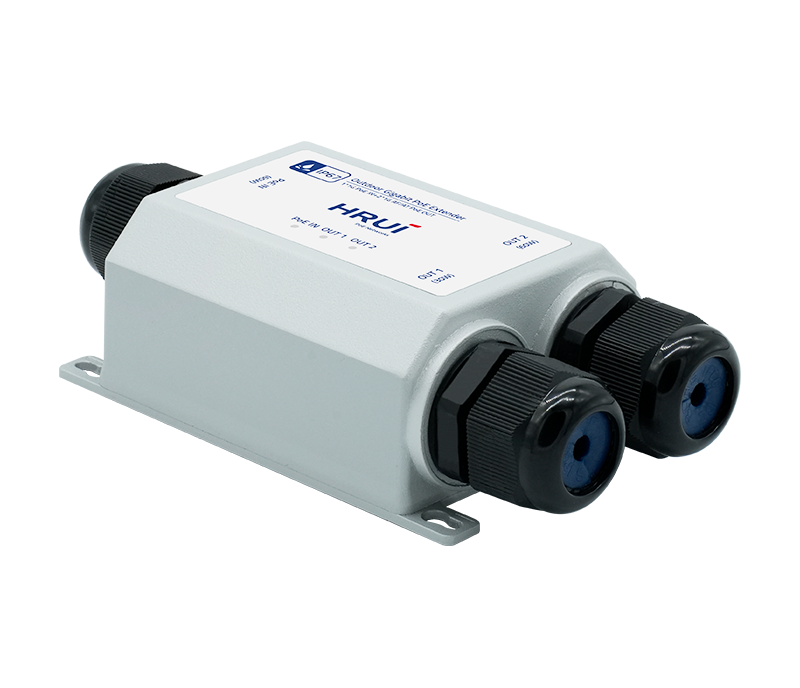

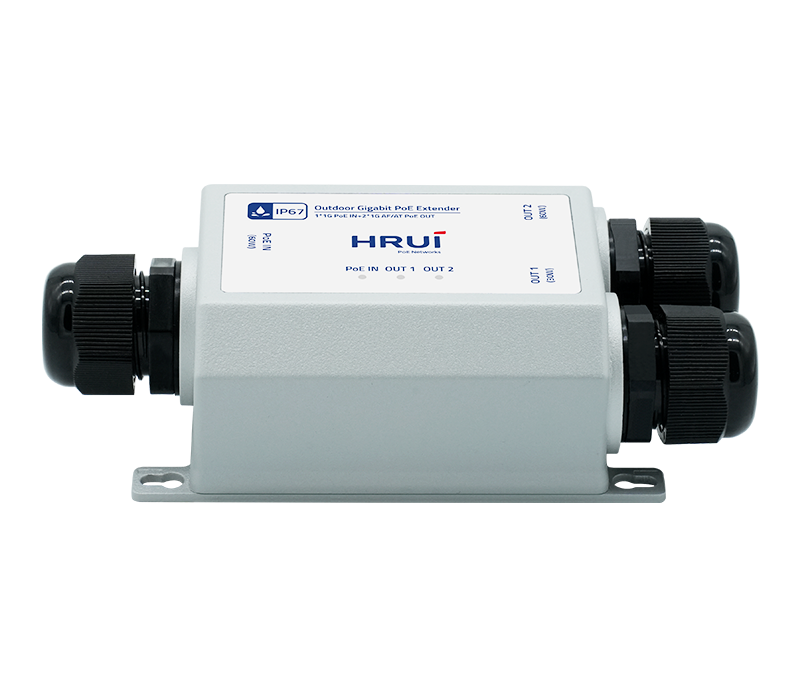

The HR-AFGRW-21 Industrial PoE Extender delivers high-performance connectivity with 1×Gbps PoE input and 2×Gbps PoE output ports (supporting IEEE 802.3af/at/HiPoE up to 60W), housed in an IP67-rated die-cast aluminum casing for extreme environments (-40°C to 75°C). It extends PoE and Ethernet transmission up to 100 meters with 6Gbps switching bandwidth, auto-protection for connected devices, and plug-and-play wall-mount installation, ideal for harsh industrial and outdoor applications.
Product Highlights:
1、1*1Gbps PoE in port+2*1Gbps PoE out ports
2、Comply with IEEE802.3af (15.4W), IEEE802.3at (30W), HiPoE (60W)
3、Die cast aluminum casing, IP67 protection level, operating temperature range of -40~75°C
4、Support PoE and Ethernet transmission distance extension of 100 meters
5、Automatically detect and protect PoE devices from damage caused by incorrect installation.
6、Support wall mounted installation
7、Plug and play, easy to install
| Description | Specification |
| Model | HR-AFGRW-21 |
| Interface | 1*1Gbps PoE in port 2*1Gbps PoE out ports |
| Port Standard | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) |
| Switching Bandwidth | 6Gbps |
| Packet Forwarding Rate | 4.46Mpps |
| Packet Buffer | 3Mbit |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) IEEE802.3at (30W) HiPoE (60W) |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port 1 supports PoE out <30W Port 2 supports HiPoE 60W |
| PoE IN | IEEE802.3af/at/HiPoE 60W |
| Power Supply | PoE powered |
| Mainboard Power Consumption | 1.53W |

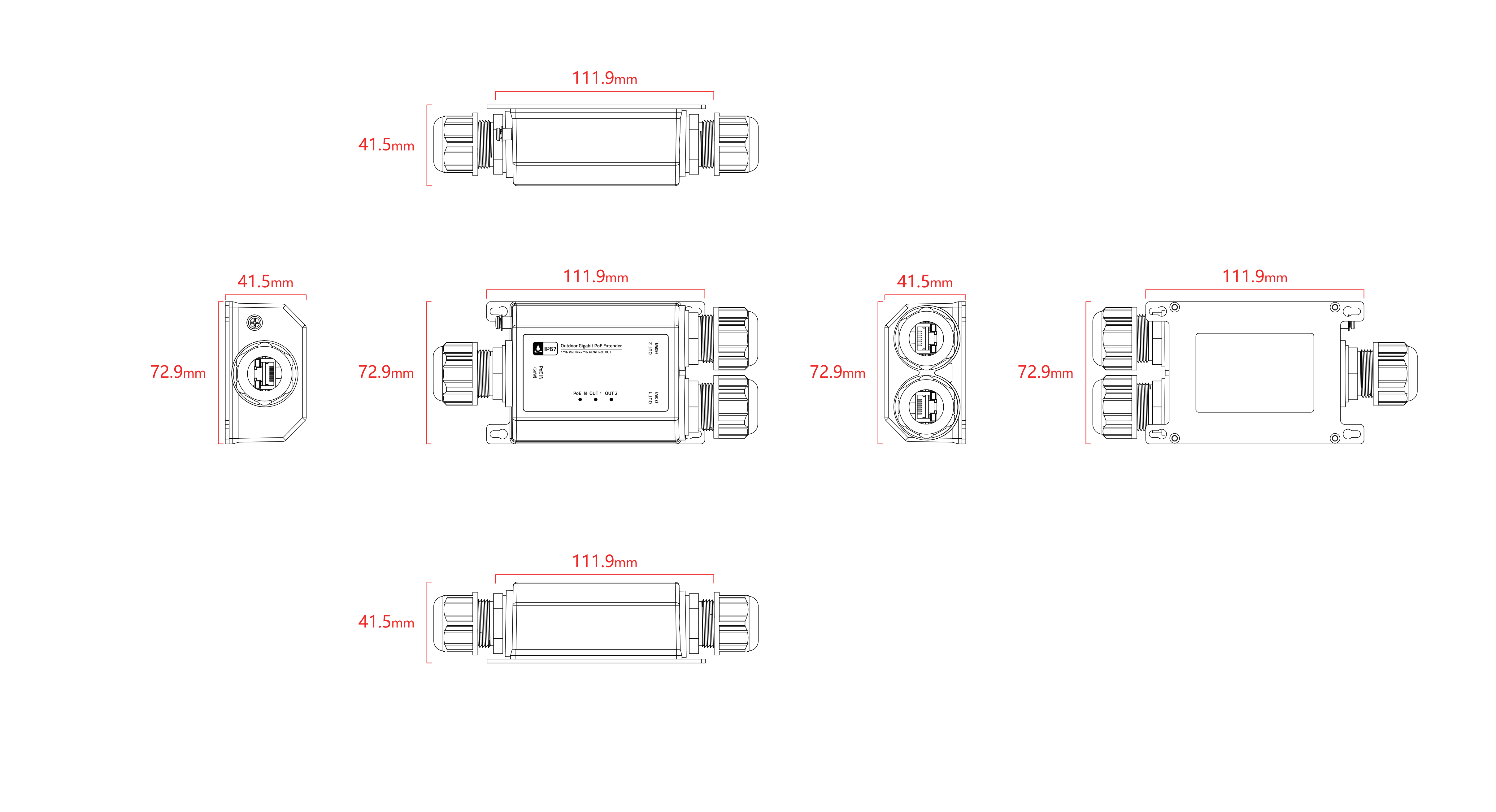

| Structure Information | Product Dimensions: 111.9*72.9*41.5mm Packaging Dimensions: 210*160*67mm Product Net Weight: 0.2KG Product Gross Weight: 0.36KG |
| Packing Information | Carton Dimensions: 447*360*340mm Packing Quantity: 20PCS Packing Weight: 8.2KG |
| Package Contents | PoE Extender 1pcs, Waterproof joint 3pcs, Waterproof cover 1pcs, thin open-end wrench 1pcs, Grounding wire 1pcs, Expansion screw 1pcs |
| Fan Quantity | 0 |
| Installation | Desktop |
| Surge Protection | Port Surge: Common mode 6KV, Differential mode 4KV(Class B) Electrostatic ESD: Air 8KV, Contact 6KV(Class B) |
| Operating Temperature | -40~75°C |
| Storage Temperature | -40~85°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| PoE in Green LED | On: Link normal Off: Link blocked Flashing: Data transmitting |
| PoE out Green LED | On: Link normal Off: Link blocked Flashing: Data transmitting |
Application Scenarios：
1、Outdoor Surveillance Systems - Ideal for extending PoE power and data to IP cameras in remote locations.
2、Industrial IoT Networks - Enables stable connectivity for sensors and devices in harsh factory environments.
3、Smart City Infrastructure - Supports traffic monitoring and public safety equipment deployment.
4、Mining/Construction Sites - Rugged design withstands dust, moisture and extreme temperatures.
5、Agricultural Monitoring - Facilitates long-distance connectivity for field sensors and automation systems.
