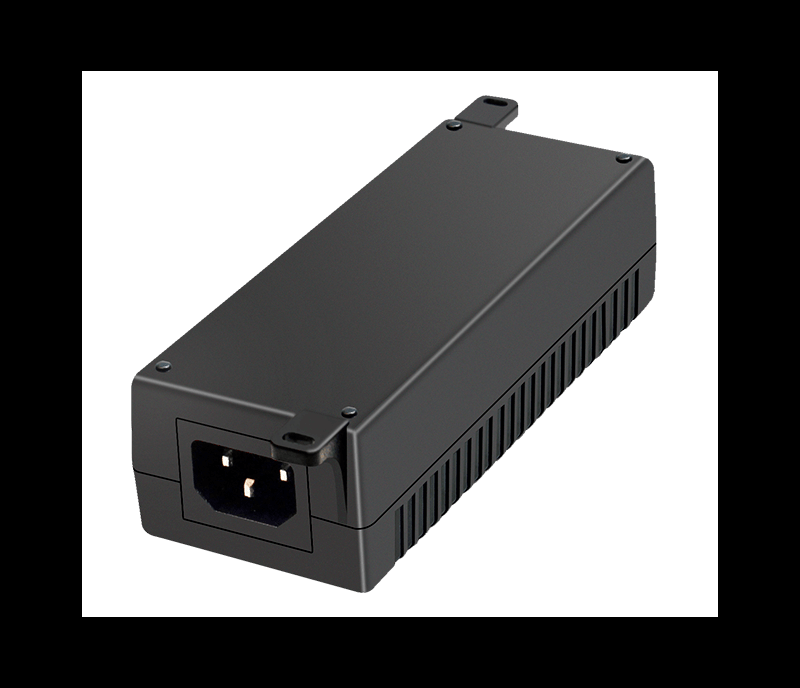

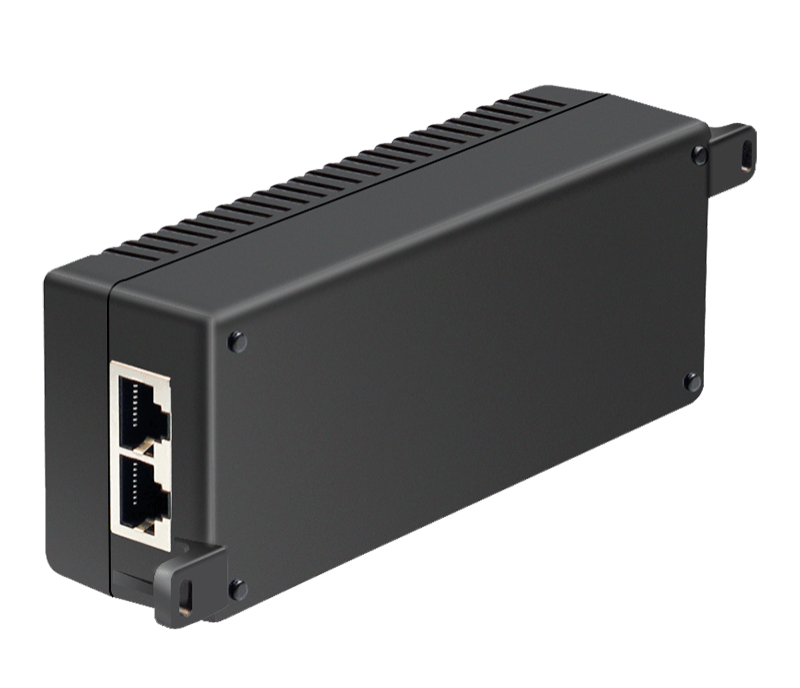

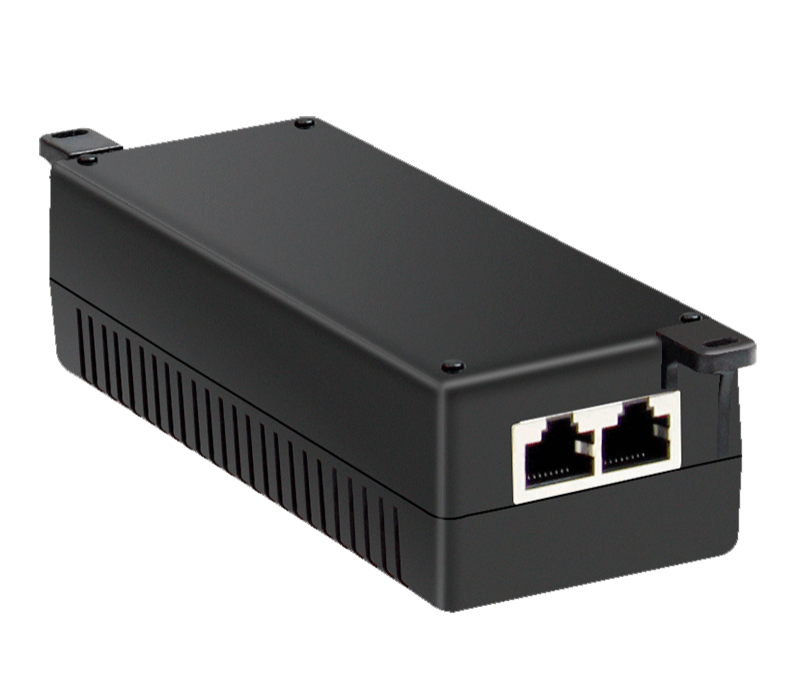

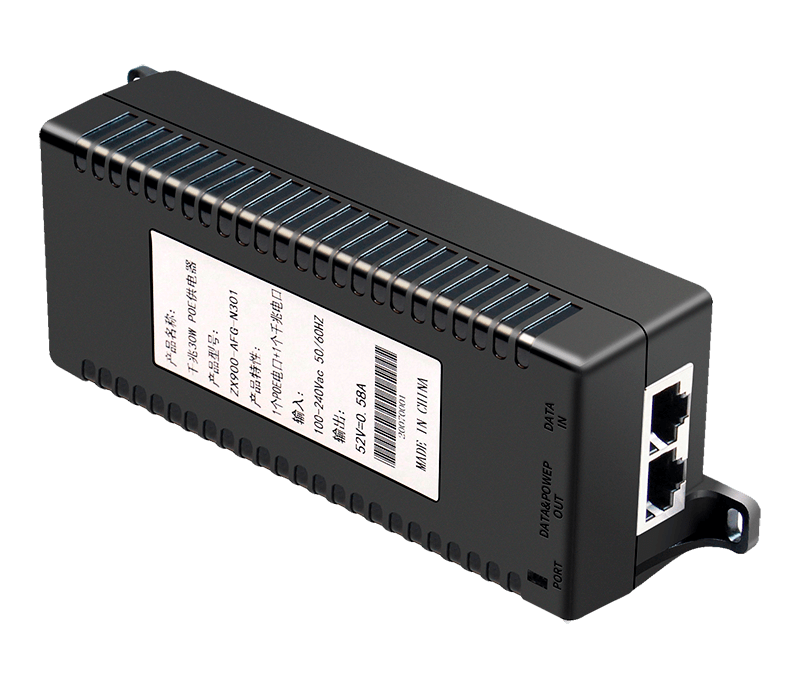

HR900-AFG-N301, a high-performance Gigabit Ethernet PoE Injector designed to deliver reliable power and data transmission across your network. This versatile injector supports a maximum output power of 30W, ensuring that your powered devices receive ample energy without sacrificing performance. Equipped with a 10/100/1000M self-adaptive port, it seamlessly accommodates various Ethernet standards, enabling efficient networking in diverse environments. The HR900-AFG-N301 operates on an input voltage range of AC 100-240V, making it ideal for both residential and commercial applications.

Engineered to withstand operating temperatures from -10℃ to +50℃, this injector features seamless ultrasonic bonding for enhanced durability and protection. Compliance with FCC, CE, and RoHS standards guarantees a safe and environmentally-friendly product, ensuring the reliability of your automation systems with uninterrupted and stable performance.

Product Features:

Multiple Ports: 1*10/100/1000M PoE Port + 1*10/100/1000M Ethernet Port

Standards Compliance: Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards

Adaptive Speed: Ethernet port supports adaptive speeds of 10/100/1000Mbps with PoE functionality

Automatic Configuration: Port Auto Flip (Auto MDI/MDIX) for easy setup

PoE Standard: Supports IEEE 802.3af (15.4W) and IEEE 802.3at (30W) standards

Wide Input Voltage: Accepts AC power supply in the range of 100-240V

Temperature Tolerance: Reliable performance in temperatures ranging from -10°C to +50°

Wall Mountable: Convenient wall-mount design for flexible installation options

Features and Highlights

• Support 1x10/100/1000M POE Port+1x10/100/1000M Ethernent Port
• Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, Standards;
• Ethernet Port Supports 10/100/1000Mbps adaptive and PoE functions
• Support Port Auto Flip (Auto MDI/MDIX)
• Compatible with IEEE802.3af (15.4W), IEEE802.3at(30w)
• Support AC 100-240 V power supply
• Working temperature -10~50°C
• Support wall mount

Application Environment

• Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
• Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
• Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
• Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
• Resistant to harsh environments: Suitable for networking in harsh environments with strong electromagnetic interference and long distances.
