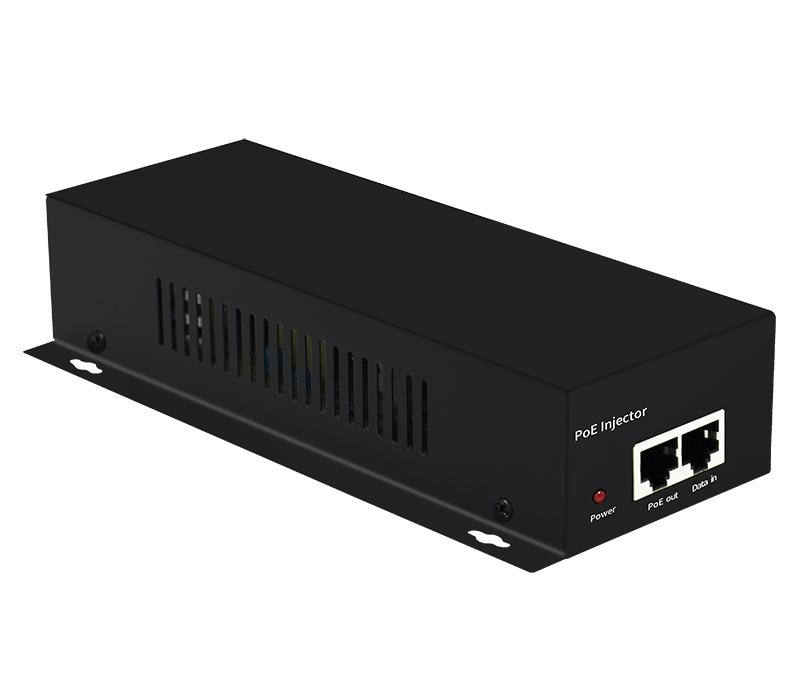

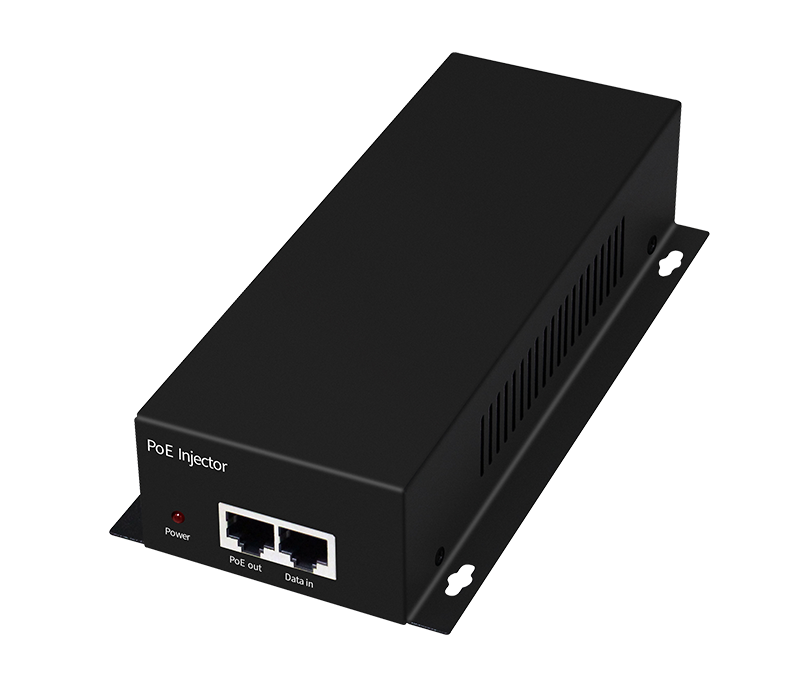

HR-BTG-N901 - Gigabit BT90W PoE Injector
Gigabit BT90W PoE injector, 1*AC power port + 1*Gigabit Ethernet Port + 1*Gigabit PoE port, 90W maximum PoE power output, support 10/100/1000M self-adaption, metal shell, Surge 6KV, ESD 15KV, working temperature range -10°C~+50°C
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
Experience seamless connectivity with the HR-BTG-N901 Gigabit BT90W PoE Injector. This powerful device features one AC power port, one Gigabit Ethernet port, and one Gigabit PoE port, delivering a maximum PoE power output of 90W. Engineered for versatility, it supports self-adaptation for 10/100/1000M speeds. Its robust metal housing ensures durability, while built-in protection features such as a 6KV surge rating and 15KV ESD protection safeguard your network. With a wide operating temperature range of -10°C to +50°C, this injector is designed to perform in various environments.
Product Features:
Multiple Ports: Equipped with 1 Gigabit PoE port and 1 Gigabit Ethernet port for efficient network connectivity.
PoE Standard: Compatible with IEEE802.3af (15.4W), IEEE802.3at (30W), and IEEE802.3bt (90W) standards, providing versatile power options for your devices.
Wide Input Voltage Range: Accepts an AC power supply of 100-240V, making it suitable for global use.
Rugged Construction: Made with a durable metal housing and rated at IP20 for dust protection, ensuring reliability in various settings.
Operating Temperatures: Performs optimally in environments ranging from -20°C to +50°C.
Enhanced Surge Protection: Features differential mode surge protection of 2KV and common mode protection of 6KV, along with ESD protection of 6KV (contact) and 8KV (air) to safeguard connected devices.
Features and Highlights
• Support 1* Gigabit PoE Port+ 1* Gigabit Ethernet Port
• Support IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (90w)
• Support power supply AC 100-240V
• Metal housing, IP20 protection grade, -20 to 50°C operating temperature
• Support port surge protection: Differential mode 2KV, common mode 6KV; ESD: Contact 6KV, air 8KV
Application Environment
• Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
• Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
• Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
• Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
• Resistant to harsh environments: Suitable for networking in harsh environments with strong electromagnetic interference and long distances.
Specification | ||
General Parameter | ||
Product Name | 90W Gigabit POE Injector | |

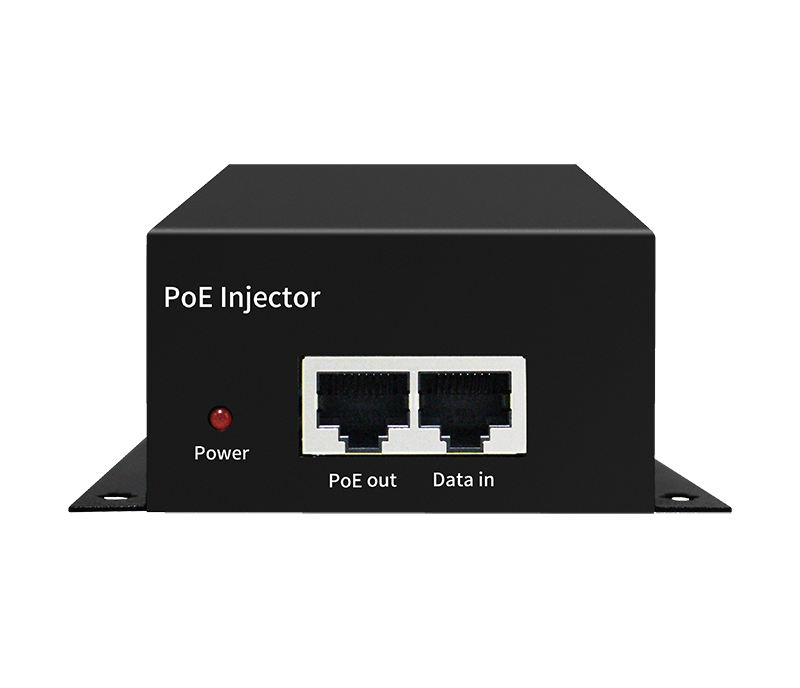

Port | 1* Gigabit POE Port+1* Gigabit Ethernet Port | |
POE Specification | PoE Standard: Support IEEE802.3af/ IEEE802.3at/ IEEE802.3bt | |
Single Port Max: 15.4W (IEEE 802.3af) Single Port Max: 30W (IEEE 802.3at) Single Port Max: 90W (IEEE 802.3bt) | ||
POE Port Output Voltage: DC 52V | ||
POE Power supply wire core: 1/2-; 3/6+ Or 4/5+; 7/8- | ||
Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤200m) 1000Base-TX: Cat5 or above UTP(≤200m) | |
Indicator | PWR | On: Powered on |
Off: Powered off | ||

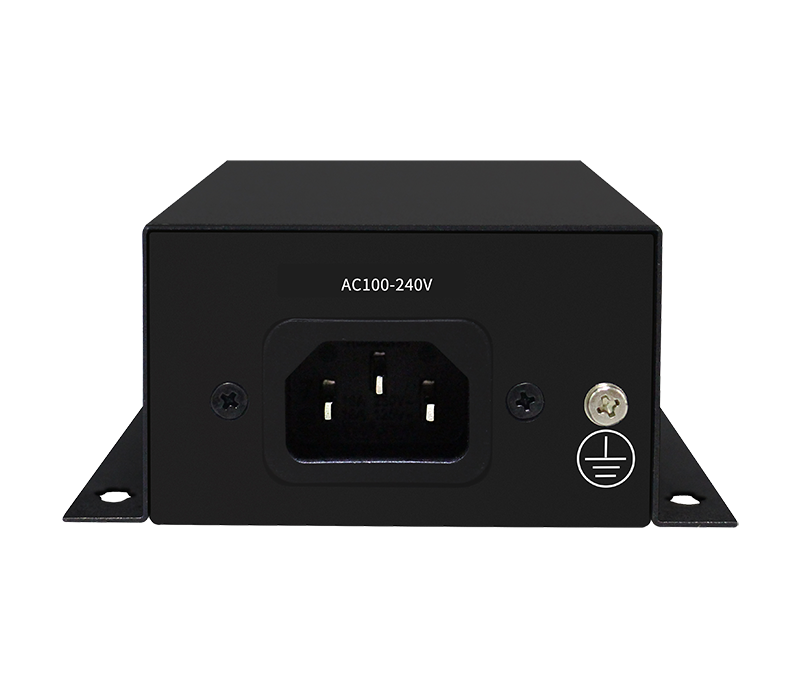

Power | Input Voltage: AC 100-240V Working Frequency: 50/60 Hz Supply Power: 52V/1.73A | |
Working Environment | Working Temperature: -20～50℃ | |
Storage Temperature: -40～85℃ Humidity: 5%~95 % (non-condensing) | ||
Industry Standard | EN61000-4-2 （ESD） | |
IEN61000-4-5 （Surge） EN61000-4-3 （RS） EN61000-4-6 （CS） EN61000-4-4 （EFT） | ||
FCC Part 15/ CISPR32 /EN55032： CLASS A IEC 60068-2-27 Impact test | ||
IEC 60068-2-32 Free fall test | ||
IEC 60068-2-6 Vibration test | ||
Physical Structure | Protection Grade: IP20 Install: Wall Mounting | |
Product N.W: 0.486KG | ||
Product G.W: 0.712KG | ||
Product Size (L*W*H): 187mm* 95mm*40 mm Package Size (L*W*H): 245mm*190mm*60mm | ||
Carton size (L*W*H): 520mm*320mm*400mm | ||
Packing Qty: 20 units | ||
Packing weight: 15.24KG | ||
Package List | 90W Gigabit POE Injector: 1 PCS | |
Manual: 1PCS | ||
Certificate, warranty card：1PCS | ||
Safety Certification | CE, FCC, RoHS | |
MTBF | 100,000 Hours | |
Order Info | ||
Model | Description | |
HR-BTG-N901 | 1* Gigabit PoE Port+ 1* Gigabit Ethernet Port | |
