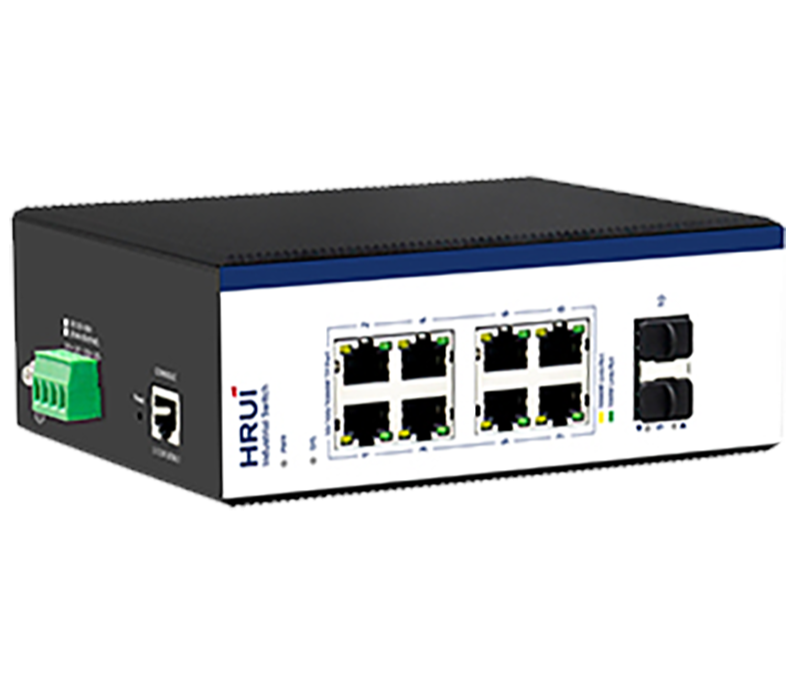

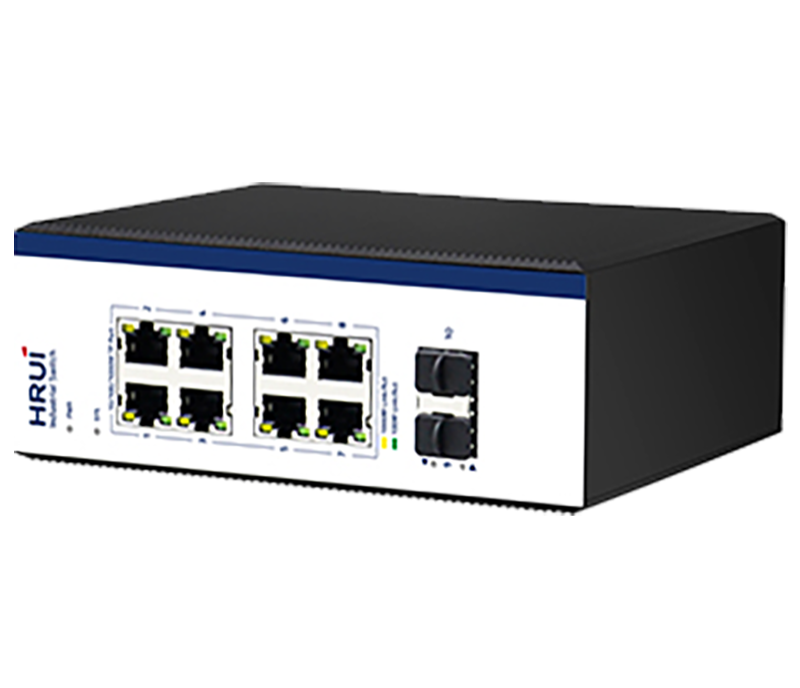

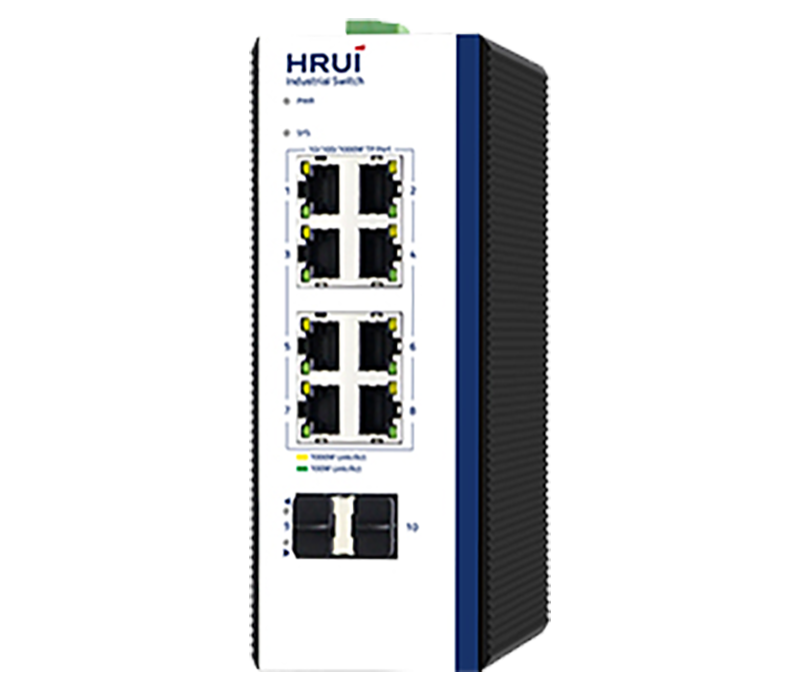

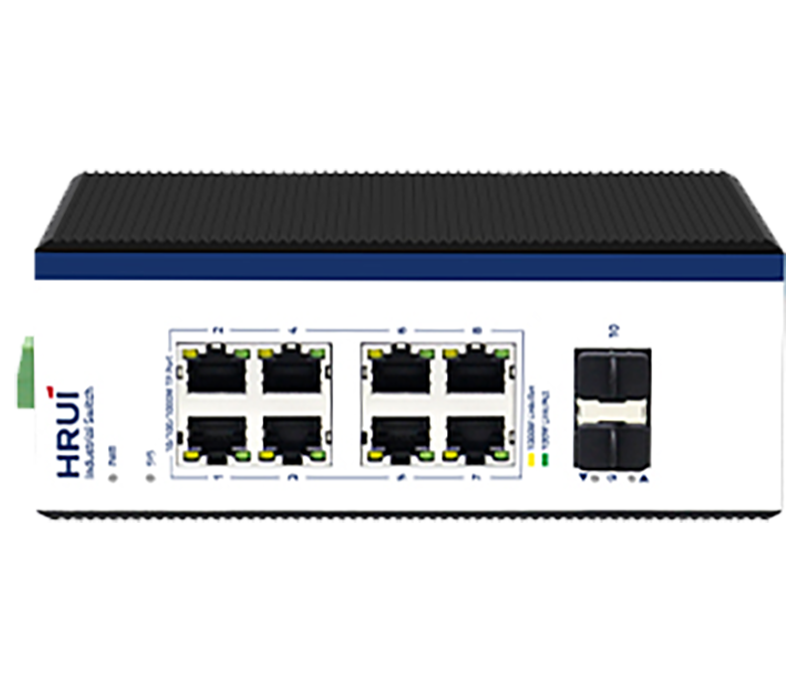

HR600-SWG2082AS
2.5G ring network industiral managed Ethernet switch, with 8*Gigabit RJ45 ports + 2*2.5G uplink SFP ports + 1*Console port, 9-10 ports support 2.5G, bandwidth 26Gbps, Layer 2 management, support ERPS protocol, ring network redundancy, IP40 protection, Surge 6KV, ESD 15KV, DC12-55V power input, redundant power supply, adapt to -40°C~+75°C wide temperature
- Feature and Benefits
- Parameter
- Product structure
- Application topology
The HR600-SWG2082AS is a robust, 2.5G industrial managed Ethernet switch designed for demanding network environments. Equipped with 8 Gigabit RJ45 ports and 2 2.5G uplink SFP ports, along with 1 console port, this switch delivers a high bandwidth capacity of 26Gbps. It features advanced Layer 2 management and supports the ERPS protocol, ensuring reliable ring network redundancy. Engineered for durability, it boasts an IP40 rating for protection against dust, as well as impressive surge (6KV) and electrostatic discharge (15KV) resilience. The unit operates on a broad power input range of DC 12-55V and includes a redundant power supply feature, making it suitable for extreme temperature ranges of -40°C to +75°C.
Product Features:
Comprehensive Protocol Support: Compatible with IEEE802.3 standards, including IEEE802.3u, IEEE802.3x, IEEE802.3z/AB, IEEE802.1Q, IEEE802.1p, and IEEE802.1D/w.
Advanced Network Redundancy: Support for Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), and ERPS ensures minimal downtime and enhances network reliability.
Efficient Network Management: SNMP v1/v2/v3 support allows for streamlined network monitoring and management.
Multicast Filtering: Offers IGMP Snooping, static multicast filtering, and MLD Snooping to optimize data transmission and reduce unnecessary traffic.
Enhanced Security: Features 802.1x port authentication and AAA authentication to bolster network security.
Versatile Management Options: Management through WEB, Telnet, CLI, and SSH interfaces for flexible access.
Robust Build Quality: Constructed with a high-strength aluminum profile shell, rated to IP40, and designed for DIN35 rail installation.
Industrial-Grade Design: Engineered for extreme conditions, operating effectively in temperatures from -40°C to +75°C, ensuring reliability in harsh environments.
Power Supply Redundancy: Supports redundant power supply connections with anti-reverse protection to prevent misconfigurations.
EMC Compliance: Meets the EMC EN55032 standard, ensuring minimal interference with other electronic devices.
| Description | Specification |
| Model | HR600-SWG2082AS |
| Interface | 8*1Gbps RJ45 ports |
| 2*2.5G SFP ports (comply with 155M/1.25Gbps) | |
| 1*Console port | |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE 802.3ab (Gigabit Ethernet) | |
| IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
| IEEE802.3x (Flow Control) | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1D Spanning Tree Protocol | |
| Switching Bandwidth | 26Gbps |
| Packet Forwarding Rate | 19.34Mpps |
| Packet Buffer | 4Mbit |
| MAC Address Table | 8K |
| Jumbo Frame | Up to 9600bytes |
| VLAN | VLAN range 1-4094, maximum active VLAN is 4K |
| Transmission Method | Store and Forward |
| Power Supply | DC12~55V |
| Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) | |
| Mainboard Power Consumption | 6.278W |

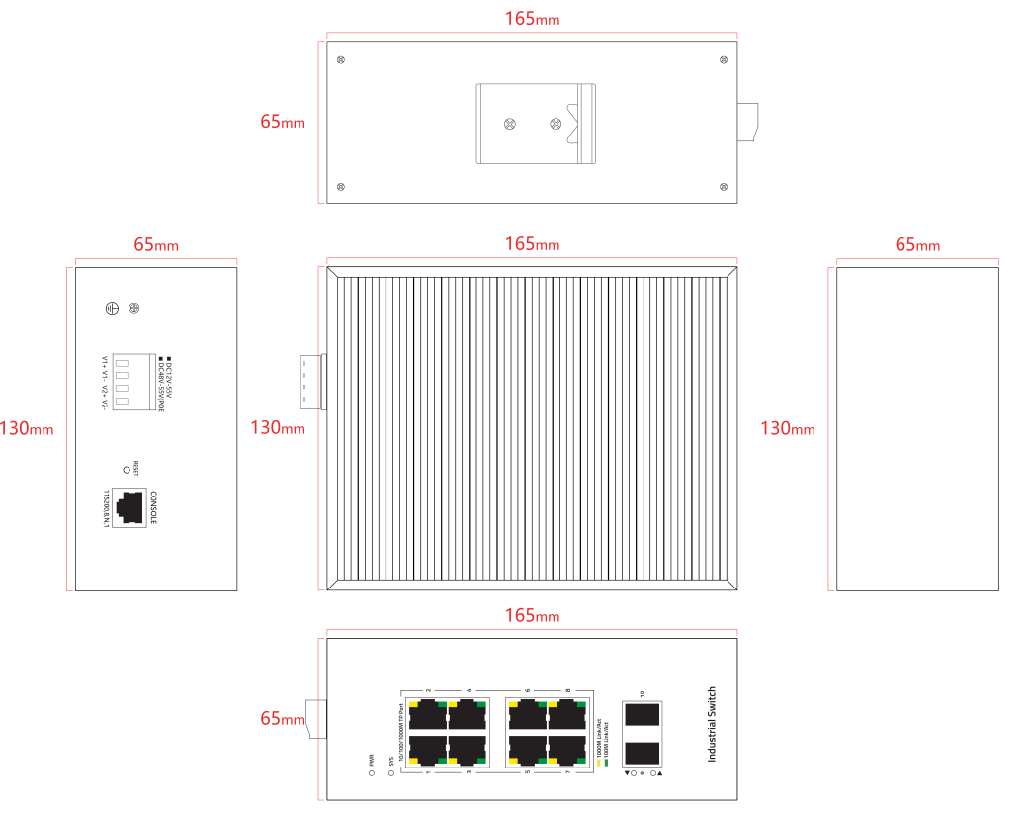

| Structure Information | Product Dimensions: 165*130*65mm |
| Packaging Dimensions: 242*207*86mm | |
| Product Net Weight: 0.76KG | |
| Product Gross Weight: 1.04KG | |
| Packing Information | Carton Dimensions: 445*445*510mm |
| Packing Quantity: 20PCS | |
| Packing Weight: 21KG | |
| Package Contents | Switch 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Serial cable 1pcs |
| Fan Quantity | 0 |
| Installation | Desktop, Wall mounting installation, Rail installation |
| Surge Protection | Port Surge: Common mode 6KV, Differential mode 2KV |
| Electrostatic ESD: Air 15KV, Contact 8KV (Class C) | |
| Operating Temperature | -40~75°C |
| Storage Temperature | -40~85°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| PWR | On: Powered on |
| Off: Powered off | |
| SYS Green LED | On: The system is running normally |
| Flashing: System startup in progress | |
| Ports 1-8 | Yellow LED on: 1Gbps Link normal |
| Green LED on: 10/100Mbps Link normal | |
| Off: Link blocked | |
| Fast Flashing: Data transmitting | |
| Ports G9-G10 Green LED | On: Fiber optic link normal |
| Off: Fiber optic link blocked | |
| Flashing: Link data transmission | |
| Reset | Short press to restart, long press for 6 seconds to restore factory settings |
| Software Features | |
| L2 Function | |
| IPv4 | IPv4 VLAN Interface |
| IPv4 Static Routes | |
| ARP | |
| Port | Port Switch configuration |
| Port Description configuration | |
| Port Speed configuration | |
| Port Duplex configuration | |
| Port Flow Control configuration | |
| Max. 2500Mbps at SFP interface | |
| Jumbo Frame | |
| EEE | |
| Fiber Module(DDM) | |
| Link Aggregation | Support load balance policy; Base on MAC and IP-MAC |
| Static and Dynamic Group | |
| Support LACP | |
| Storm Control | Boardcast suppression |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | One to one monitor |
| Many to one monitor | |
| Ingress/Egress/Both | |
| Port Security | MAC Address Constraints |
| Action：Trap/Shutdown | |
| Port Isolation | Support |
| Port Rate-limit | Support |
| Loopback Detection | Support |
| VLAN | Access/Trunk/Hybrid |
| VLAN Tunnel (Q-in-Q Tunnel) | |
| GVRP | |
| VLAN range 1-4094, maximum active VLAN is 4K | |
| MAC Address | Dynamic MAC address |
| Static MAC address | |
| Spanning Tree Protocol | STP/RSTP/MSTP |
| BPDU Filter | |
| BPDU Guard | |
| Edge Port | |
| ERPS | Major and sub ring |
| up to 16 rings | |
| Smart Ring | Private Ring |
| Major and sub ring | |
| Up to 16 rings | |
| PTP | Ordinary Clock |
| Boundary Clock | |
| Transparent clock | |
| LLDP | Support |
| Multicast | IGMP Snooping |
| IGMP V1/V2/V3 | |
| Router Port | |
| Static IGMP group address | |
| IGMP groups filtering | |
| Querier | |
| MLD Snooping | |
| QoS | Traffic classification based, Strict priority and WRR |
| Port Priority | |
| 802.1P Priority | |
| IP DSCP Priority | |
| Support up to 8 queues per port | |
| Port Shaping | |
| Services | |
| DHCP | DHCP Server |
| IP Pool | |
| Static Binding | |
| DHCP Relay | |
| Access Protocol | HTTP |
| Telnet | |
| SSH | |
| Manager ACL | |
| Security | |
| AAA | RADIUS |
| TACACS+ | |
| 802.1X | |
| Base on port/MAC/local/WEB | |
| DHCP Snooping | Support |
| IP Source Guard | Support |
| Dynamic ARP Inspection | Support |
| ACL | MAC ACL |
| Port ACL | |
| IPv4 ACL | |
| IPv6 ACL | |
| Diagnostics | |
| Syslog | Logging Message |
| Remote Server | |
| Ping | Support |
| Traceroute | Support |
| Cable Diagnositics | Support |
| Equipment Management | |
| Manager Access | Console |
| HTTP | |
| Telnet | |
| SSHv2 | |
| SNMP | |
| Manager IP | Static Address |
| DHCP Client | |
| Support IPv4 and IPv6 address | |
| DNS | |
| Time Synchronization | SNTP |
| Manual Time | |
| SNMP | V1/V2C/V3 |
| Community | |
| V3 User | |
| Group | |
| Trap Host | |
| SNMP MIB | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
| RFC 2863 Interface MIB | |
| Private MIB | |
| RMON | Statistics |
| History Configuration | |
| Event Configuration | |
| Alarm Configuration | |
| User Management | Congurable user privilege level from 0 - 15; |
| Firmware Management | Firmware upgrade |
| Double Image; Swap between Active and Alternate firmware image. | |
| Configuration Management | Upload and download |
| Save | Support |
| Restart | Support |
| Factory Defaults | Support |
| Standard Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| FRC 3810 MLD v2 | |
