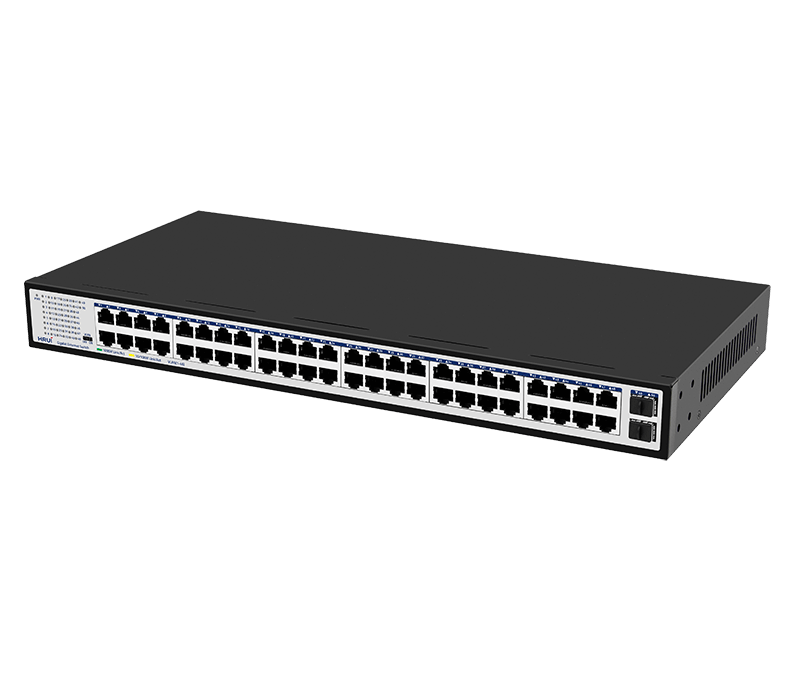

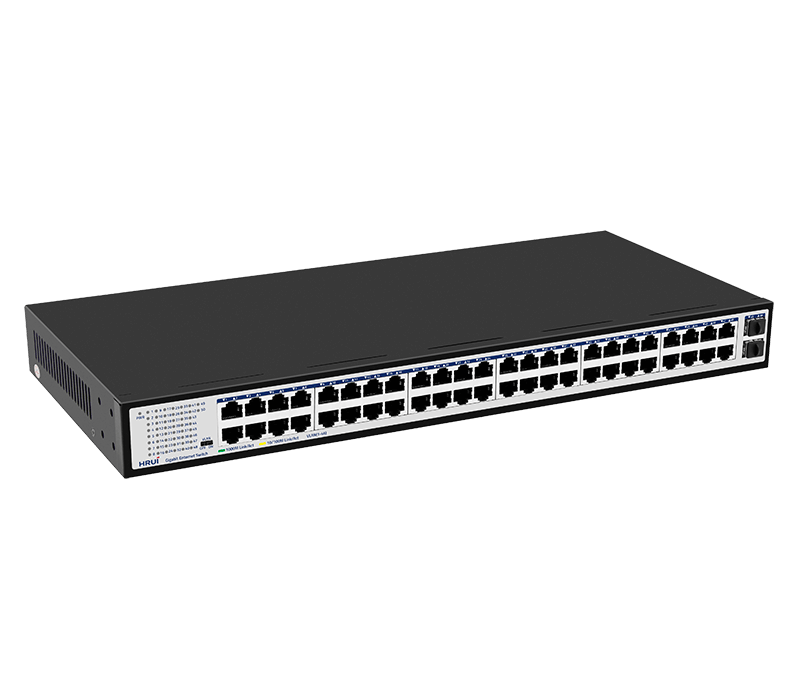

HR-SWG10482S
50 Port Gigabit Ethernet switch, provide 48* 10/100/1000M adaptive Ethernet ports+2* Gigabit SFP ports. Adopting high-quality and high-speed network ICS, this product thoroughly solves the problem of high noise when deploying small switches in office environments through a fan free silent design. This switch has 48* 10/100/1000M RJ45 ports and can provide seamless connection for 10/100/1000M Ethernet. It supports two working modes and is easy to manage and maintain with intelligent one click dialing. The product can be widely used in security network video monitoring, hotels, campuses, small and medium-sized enterprise network engineering, and other occasions.
- Feature and Benefits
- Parameter
- Product structure
- Application topology
HR-SWG10482S, a high-performance 50-port Gigabit Ethernet switch designed to meet the demands of modern networking environments. This switch features 48 adaptive 10/100/1000Mbps Ethernet RJ45 ports and 2 Gigabit SFP ports, ensuring seamless integration with various devices and network configurations.
Engineered with top-notch, high-speed network integrated circuit solutions, the HR-SWG10482S effectively addresses issues of noise often encountered with smaller switches in office settings, thanks to its innovative fan-free design, providing a silent yet powerful performance.
The switch's RJ45 ports support a versatile range of connection speeds, making it an ideal choice for network infrastructure in security video monitoring, hospitality settings, educational campuses, and small to medium-sized enterprises. Its user-friendly configuration, including two operational modes and intelligent one-click dialing for easy management, makes it a versatile tool for any networking professional.
Product Features:
Port Configuration: 48 Gigabit RJ45 ports + 2 Gigabit SFP optical ports.
Standards Compliance: Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards.
Adaptive Ports: Each RJ45 port supports automatic adaptation to 10/100/1000Mbps speed.
Auto MDI/MDIX: Automatic port flipping for simplified connections.
Status Monitoring: Indicator lights on the panel provide real-time monitoring of operational status and facilitate quick fault diagnosis.
VLAN Configuration: Features a dial switch for easy VLAN mode setting.
Flow Control: Adheres to IEEE 802.3x standard for full duplex and backpressure standard for half duplex operation.
Loop Alarm: Integrated loop alarm system to enhance network reliability.
Features and Highlights
• 48 *Gigabit RJ45 ports+2* Gigabit SFP optical ports
• Complies with IEEE802.3, IEEE802.3u, and IEEE802.3ab standards
• RJ45 port supports 10/100/1000Mbps adaptation
• Supports automatic port flipping (Auto MDI/MDIX)
• The panel indicator lights will monitor the working status and assist in fault analysis
• Supports dial switch VLAN mode
• Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
• Support loop alarm
Hardware Features & Performance | ||
Model | HR-SWG10482S | |
General | Interface | 48 *Gigabit RJ45 ports |
2* Gigabit SFP optical ports | ||
Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol | |
IEEE 802.3i: 10BASE-T Ethernet | ||
IEEE 802.3u: 100BASE-TX Fast Ethernet | ||
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet | ||
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) | ||
IEEE 802.3x: Flow Control | ||
Performance | Switching Capacity | 100Gbps |
Packet Forwarding Rate | 74.4Mpps | |
Packet Buffer | 12Mbit | |
MAC Address Table | 16K | |
Transmission Method | Store and Forward | |

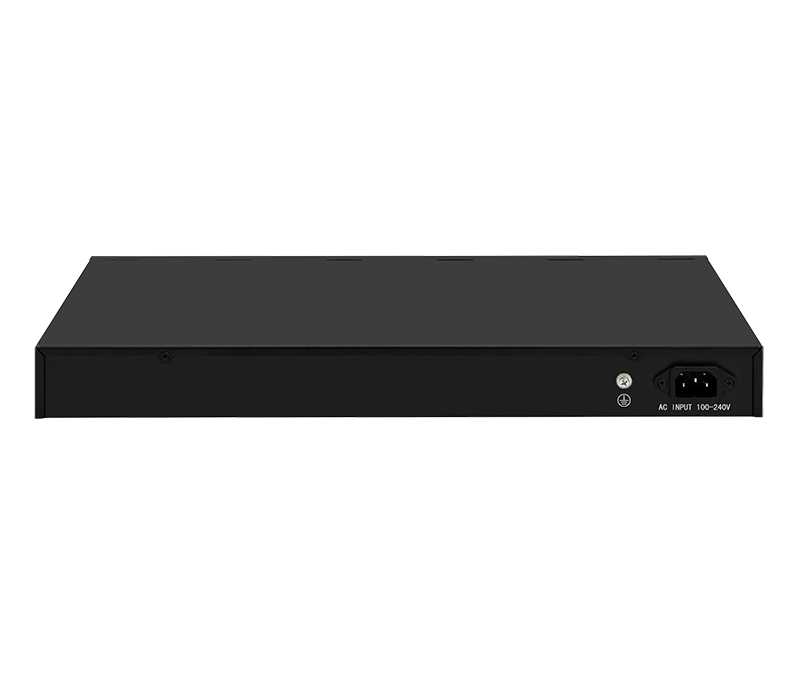

Physical | Power Supply | AC 100-240V , 50/60Hz |
DC 12V 2A | ||
Mainboard Power Consumption | 33.99W | |

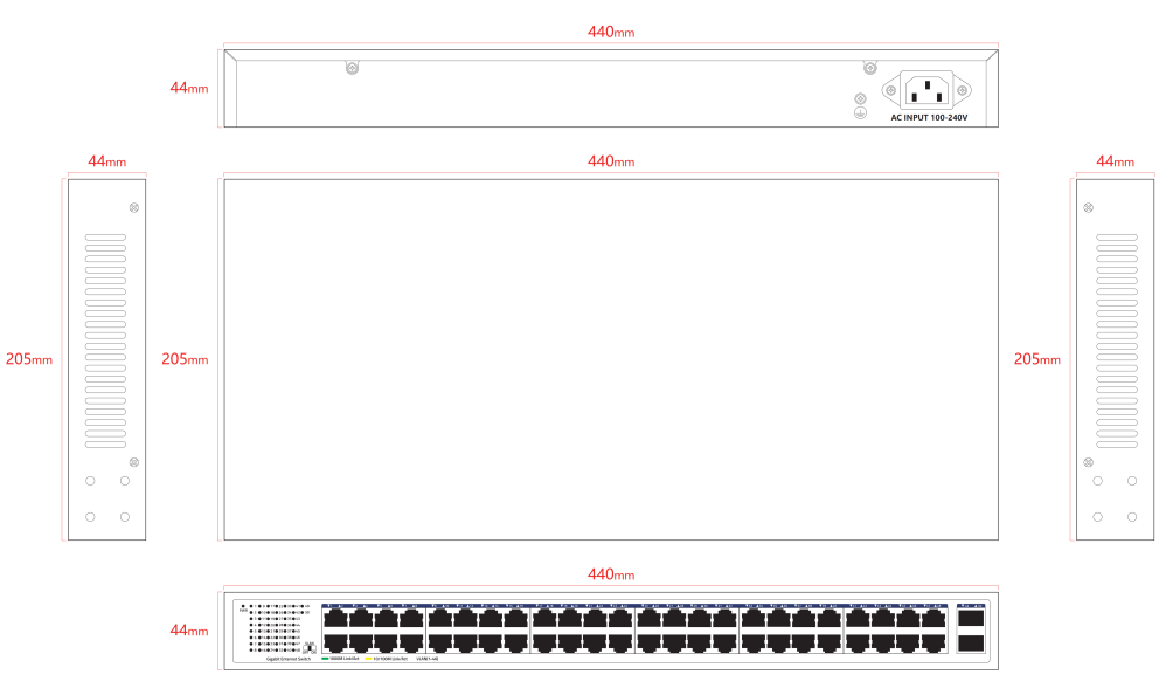

Structure Information | Product Dimensions :440*205*44mm | |
Packaging Dimensions :500*290*85mm | ||
Product Net Weight:2.826KG | ||
Product Gross Weight:3.371KG | ||
Packing Information | Carton Dimensions :520*445*310mm | |
Packing Quantity: 5PCS | ||
Packing Weight: 17.85KG | ||
Packing List | Switch 1pcs, Power cord 1pcs, instruction manual 1pcs，certificate of qualification 1pcs | |
Fan Quantity | 0 | |
Installation | desktop | |
Environment | Surge Protection | Surge Protection Common mode 6KV, differential mode 2KV; |
ESD: Air 15KV, Contact 8KV (Class B) | ||
Operating Temperature | 0~40°C | |
Storage Temperature | -40 °C to 70 °C | |
Operation Humidity | 10%~90%，non condensing | |
Storage Humidity | 5%~95%，non condensing | |

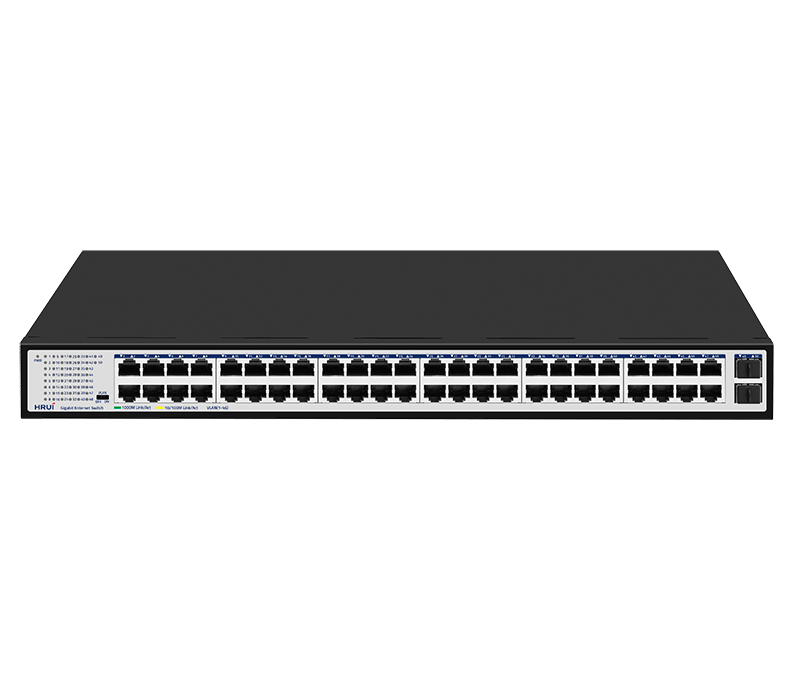

Buttons & Indicator Lights | PWR | On: Powered on |
Off: Powered off | ||
SYS | On: The system is normal | |
Flashing: System startup in progress | ||
OFF: System not started | ||
Link | Green Light ON：1000Mbps Link normal | |
Yellow Light ON：10/100Mbps Link normal | ||
Off: Link blocked | ||
Flashing: Data transmitting | ||
VLAN Mode Button | ON: 1-46 ports are isolated from each other and all communicate with 47-50 ports; | |
OFF: All ports communicate with each other; | ||
