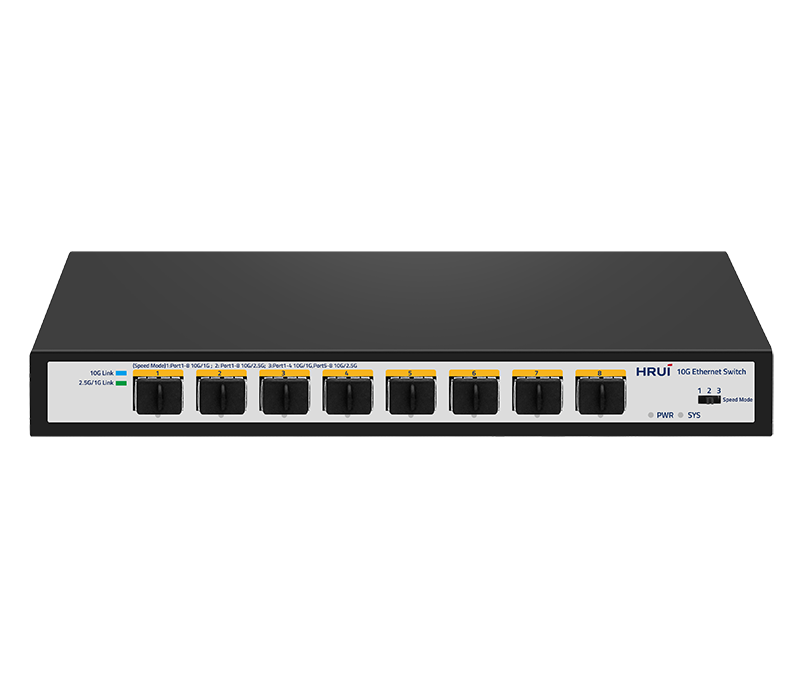

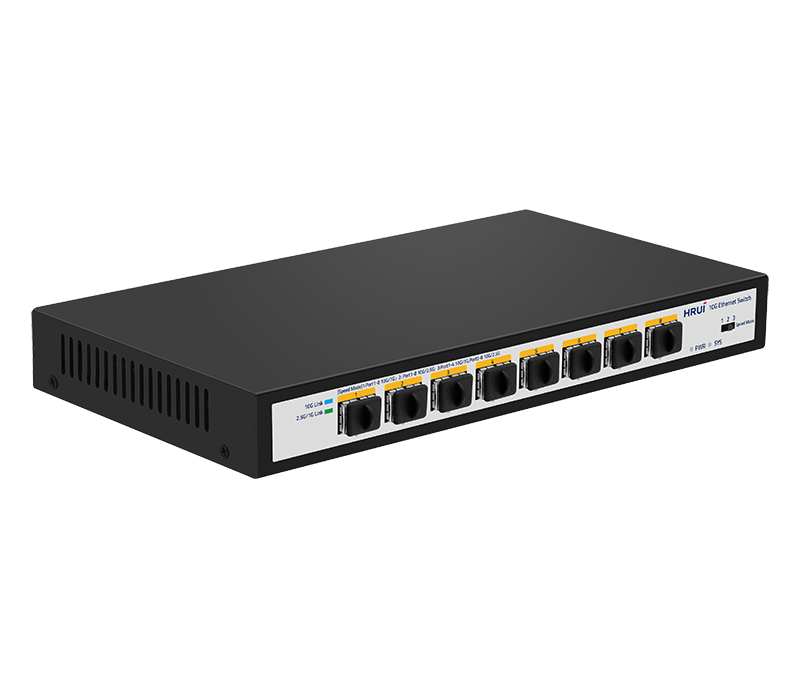

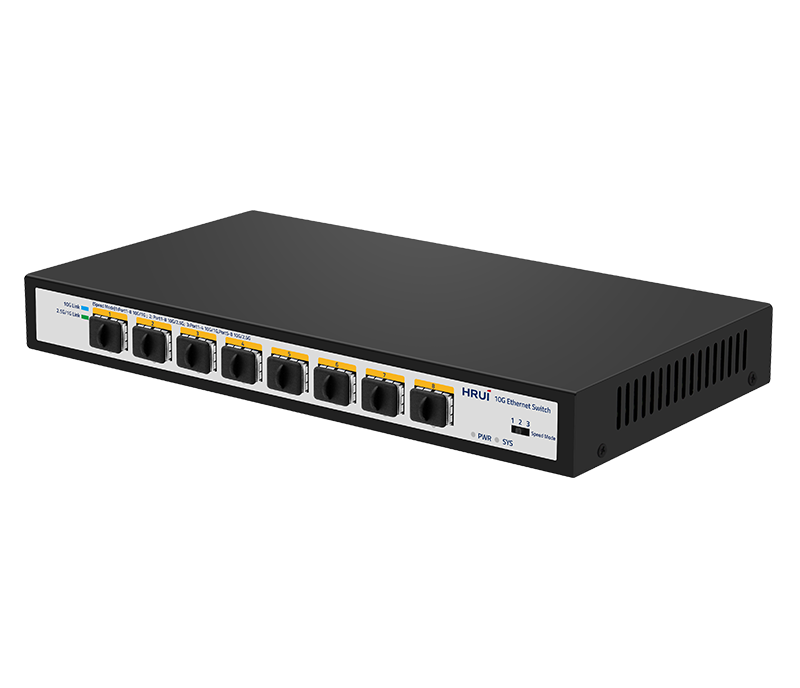

HR-SWTG1C8F - 8 Port Full 10G SFP+ Switch
This 8-port full 10G SFP+ Switch adopts a high-quality and high-speed network chip solution with a full 10G network interface and smooth line speed forwarding. It is configured with 8* 10G SFP+ ports, which supports 1.25G/2.5G/10G rates. It adopts a storage and forwarding mechanism, and internally integrates a high capacity cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations. With a sturdy and durable and high strength steel shell design, the efficient heat dissipation ensures stable operation of the product. The switch can be widely used in security network video monitoring, hotels, campuses, large and medium-sized enterprise network engineering, and other fields.
- Feature and Benefits
- Parameter
- Product structure
- Application topology
Enhanced 8-Port Full 10G SFP+ Switch
Experience lightning-fast connectivity with our advanced 8-port full 10G SFP+ Switch, engineered with a premium high-speed network chip that facilitates seamless data transfer and efficient line speed forwarding. This robust switch features 8 SFP+ ports, supporting versatile bandwidth options of 1.25G, 2.5G, and 10G, making it an ideal solution for various networking requirements.
The switch employs a sophisticated store-and-forward mechanism complemented by a high-capacity cache, enabling all ports to deliver consistent 10G non-blocking line speed, even under high-demand situations. Its durable construction features a high-strength steel shell for enhanced durability, while efficient heat dissipation ensures optimal performance stability.
Perfect for a wide range of applications, this switch is suitable for environments such as security network video monitoring, hotels, educational institutions, and large to medium-sized enterprise network infrastructures.
Product Features:
8 SFP+ Optical Ports: Equipped with 8 high-speed SFP+ optical ports.
Multi-Standard Compatibility: Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, and IEEE 802.3x standards for broad interoperability.
Flexible Bandwidth Support: Each SFP+ optical port accommodates 1.25G, 2.5G, and 10G transmission rates.
Automatic Port Flipping: Supports automatic MDI/MDIX for simplified setup and connectivity.
Integrated Status Monitoring: LED indicators on the panel provide real-time monitoring of operational status, aiding in easy fault diagnosis.
Efficient Flow Control: Implements full-duplex flow control using the IEEE 802.3x standard, with half-duplex operation utilizing backpressure mechanisms for optimized data flow.
Features and Highlights
• 8 * 10G SFP+optical port
• Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 bz, IEEE 802.3 ae, IEEE 802.3. x
• SFP+optical port supports 1.25G/2.5G/10G
• Supports automatic port flipping (automatic MDI/MDIX)
• The panel indicator lights will monitor the working status and assist in fault analysis
• Flow control mode, full duplex using IEEE802.3x standard, half duplex using backpressure standard
Hardware Features & Performance | ||
Model | HR-SWTG1C8F | |
General | Interface | 8 * 10G SFP+optical port |
Port Standard | IEEE802.3 (Ethernet) | |
IEEE802.3u (Fast Ethernet) | ||
IEEE 802.3ab (Gigabit Ethernet) | ||
IEEE 802.3z (Gigabit Ethernet Fiber Standard) | ||
IEEE 802.3ae (10 Gigabit Ethernet) | ||
IEEE802.3x (Flow Control) | ||
Performance | Switching Capacity | 160Gbps |
Packet Forwarding Rate | 119.04Mpps | |
Packet Buffer | 12Mbit | |
MAC Address Table | 16K | |
Transmission Method | Store and Forward | |

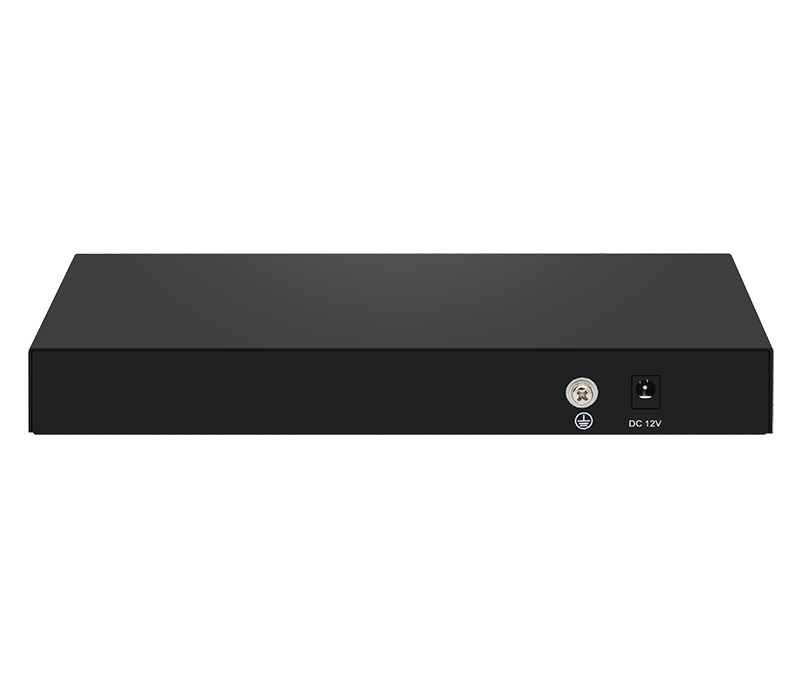

Physical | Power Supply | AC 100-240V, 50/60Hz |
DC 12V 2A | ||
Mainboard Power Consumption | 13.8W | |

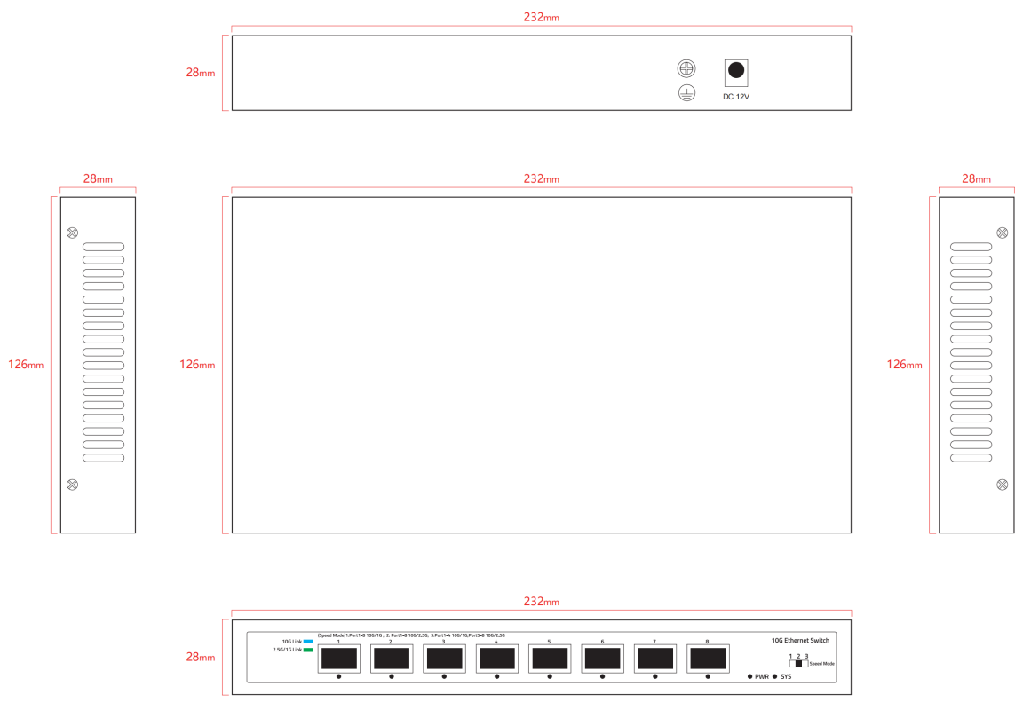

Structure Information | Product Dimensions :220*126*28mm | |
Packaging Dimensions :259*228*60mm | ||
Product Net Weight:0.62KG | ||
Product Gross Weight:0.86KG | ||
Packing Information | Carton Dimensions :535*320*480mm | |
Packing Quantity: 20PCS | ||
Packing Weight: 18.2KG | ||
Packing List | Switch 1pcs, power adapter 1pcs, instruction manual 1pcs，certificate of qualification 1pcs | |
Fan Quantity | 0 | |
Installation | desktop | |
Environment | Surge Protection | / |
Operating Temperature | 0~40°C | |
Storage Temperature | -40 °C to 70 °C | |
Operation Humidity | 10%~90%，non condensing | |
Storage Humidity | 5%~95%，non condensing | |
Buttons & Indicator Lights | PWR | On: Powered on |
Off: Powered off | ||
SYS | Flashing: System startup in progress | |
On: System startup completed | ||
SFP+ Led | Blue Led ON：10G Link normal | |
Green Led ON：1000/2500Mbps Link normal | ||
Off: Link blocked | ||
Flashing: Data transmitting | ||
Speed Modes Buttons | 1: The speed of ports 1-8 is 10G/1G; | |
2: The speed of ports 1-8 is 10G/2.5G; | ||
3: The speed of ports 1-4 is 10G/1G;The speed of ports 5-8 is 10G/2.5G; | ||
